Laguna

Model # :WBB3186136

MPN #: MDCDF15510

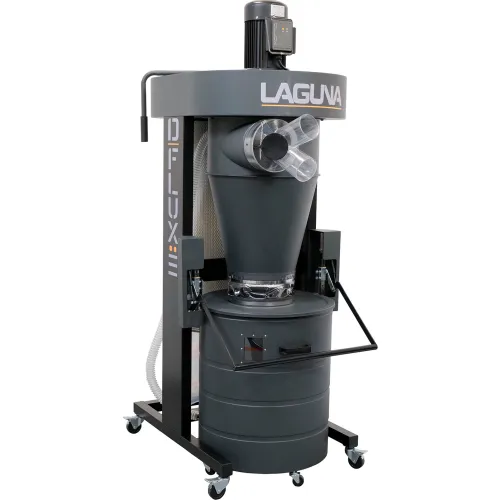

Laguna D|Flux: 1 Cyclone Dust Collector, 868 CFM, 1PH, 1-1/2HP, 110V

Product Description
Introducing the D|Flux Dust Collectors, the latest addition to the Laguna Dust Collection line-up, designed to meet and exceed essential dust collection performance, all while keeping your workspace clean.

The D|Flux series offers powerful TEFC motors tailored to your power needs, a highly efficient cyclone separator that captures heavy particles, and fine dust collection in a clear plastic bag. The innovative 1 Micron canister filter ensures superior air filtration and easy maintenance. The user-friendly design includes a wireless remote for convenient operation, magnetic hose connections, and air-strut-assisted drum lids for effortless handling.

Specs:
  • Motor: 1-1/2 HP
  • Voltage: 110 volt
  • Inlet: 6"
  • Splitter: 2 x 4"
  • Collection Volume: 20 Gallon Drum
  • Filter Size: 14-1/2" x 24"
  • Max Air Flow: 868 CFM
  • Max Static Pressure: 9.7"
  • Collection Type: 2 Stage Cyclone
  • Impeller: Cast Aluminum 12-3/4"
  • Drum Bag Retention: Negative Pressure
  • Drum Bag Hose: Magnetic Connector
  • Drum Lid Hose: Clear Hose
  • Drum Handle Lift: Air Strut Assistance
  • Mobility: Machine and Drum Wheels
  • Certification: ETL
  • Remote Control: RF Remote
  • Sound Rating: 78 dB
  • Dimensions: 27-1/2" x 44" x 70"
  • Filter Cleaning: Manual Filter Cleaning
  • Packaging: 1 Box


PRICE
$1,949.00

1
1
Ships in 4 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length27-1/2 in
Width27-1/2 in
Height70 in
Weight260 lbs
2 Hose Connection Diameter4 in
Air Inlet6 in
Connection Diameter6 & 4
Particle Size1 mic
Static Pressure9-11/16 in
1-Hose Connection Diameter6 in
Filter Bag/Canister Length24 in
Bag Diameter14-1/2 in
Impeller Diameter12-3/4 in

Product Details

Prewired Voltage110 V
MaterialCast Aluminum
Phase1
Manufacturers Part NumberMDCDF15510
Motor Horsepower1-1/2 HP
BrandLaguna
TypeDust Collection System
Remote ControlYes
ColorGray
Amperage15 A
Sound Rating78 dB
Number of StagesSingle
Voltage110 V
Dust Collector TypeCyclone
Max Airflow868 CFM

Warranty

Warranty2 yr
