Laguna

Model # :WBB3186195

MPN #: MDCXF52201

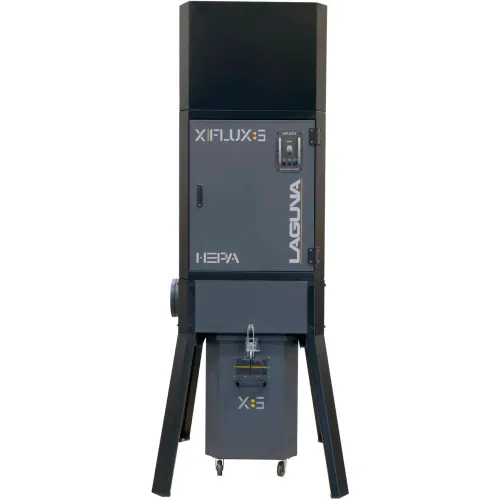

Laguna X|Flux: 5 Cyclone Dust Collector, 3093 CFM, 1PH, 5HP, 220V

Product Description
The all-new X|Flux 5 boasts a powerful 5hp motor and impressive 3093 CFM. Auto-cleaning of the HEPA filter is accomplished by double-paddles that sweep the filter every 3 minutes of system use in a clockwise and counterclockwise action. Remote and LED drum light are standard. The X|Flux 5 is a full-size stationary, single-stage dust collection unit with a convenient 39-gallon drum on locking casters.

Features:
  • Motor Specs: 5HP
  • Electrical Specs: 220V / 60Hz / 1PH / 3450 RPM
  • Running AMP: (8" inlet) 18.5A at 220V
  • Maximum Air Flow: 3093 CFM (Cubic Feet Per Minute)
  • Shop Setting Air Flow: 1823 CFM
  • Max Static Pressure: 12"
  • Fan Size: 14-1/2"
  • Inlet: 8"
  • Auto Clean: 3 min. Interval 10 Seconds F+R
  • Decibel Reading: 69 dBA (@9.8ft)
  • Remote Control: High Frequency
  • Collection Capacity: 39 Gallon Octagon Drum
  • Assembled Dimensions (L x W x H): 36" x 38" x 91"
  • Machine Weight: 456 lbs. (207 kg)
Filter Specs
  • Filtering Area: 32.3 sq/ft (3 sq/m)
  • Cartridge Filter: HEPA 19-11/16" x 19-11/16" (50 x 50 cm) x 1pc; (0.3 – 0.4 Micron @ 99.7& Efficiency)
Shop Setting Air Flow measured with hoses connected to inlet.

The non-stick PTFE membrane has some disintegration after 200,000 cycles at the area where the cleaning paddles/arms touch the filter media. This does not largely affect the filtration efficiency. The HEPA filter media used on Laguna Cyclones are independently tested by an accredited 3rd party (TTRI). Designed with wide-spaced pleating to maintain optimum performance throughout filter lifespan.

PRICE
$6,199.00

1
1
Ships in 4 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length36 in
Width38 in
Height91 in
Weight456 lbs
2 Hose Connection Diameter8 in
Air Inlet8 in
Connection Diameter8
Particle Size0.3 - 0.4 mic
Static Pressure12 in
1-Hose Connection Diameter8 in
Impeller Diameter14-1/2 in

Product Details

Prewired Voltage220 V
Phase1
Manufacturers Part NumberMDCXF52201
Motor Horsepower5 HP
BrandLaguna
TypeDust Collection System
Remote ControlYes
ColorBlack
Amperage18.5 A
Sound Rating69 dB
Number of StagesTwo
Voltage220 V
Dust Collector TypeCyclone
Max Airflow3093 CFM

Warranty

Warranty2 yr
