Laguna

Model # :WBB3186196

MPN #: MDCBF1110C1M

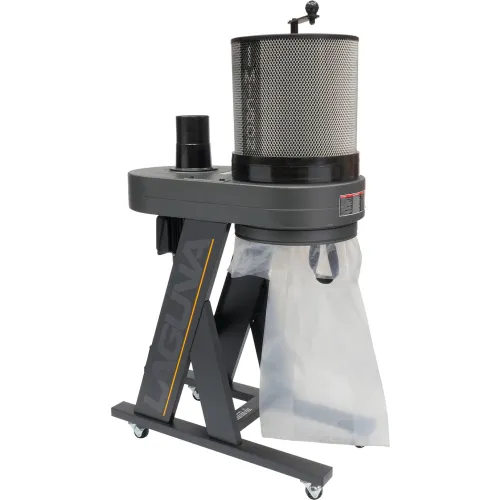

Laguna B|Flux: 1 Canister Dust Collector, 1 Micron, 650 CFM, 1PH, 1HP, 110V

Product Description
The best looking single stage dust collector to hit the market in years. Sleek design and power to match. No more fumbling with a steel band to mount your lower bag, the B|Flux comes with a patented Snap-Band that makes changing the bag a breeze. Unlike most 1HP units the B|Flux feels solid & has a low dB rating. The horizontal dust chute provides optimum airflow & can swivel 180° to make the 4" outlet face downwards. The B-flux dust collector can be oriented with the inlet port pointed up or down.

Features:
  • Recommended Breaker: 15 Amps
  • Hertz: 60
The B|Flux:1 comes standard with a 1 micron canister providing filtration of 99.97% of particles between 0.2 ~ 2 microns & features 17.2 square feet of polyester spun bond pleated filter to ensure maximum airflow. Hand crank cleaning prevents clogging of the filter.

Specs:
  • Plug: Yes
  • RPM: 3450
  • Switch Type: Motor Mounted Direct Switch
  • Hand Held Remote: None
  • Shop Setting CFM: 550
  • Inlet CFM: 650
  • Max Static Pressure (Inches of Water): 4.86"
  • Impeller/Fan Size: 9"
  • Impeller Material: Steel
  • Impeller Type: Radial Fin
  • Balanced To: ISO 1940
  • Inlet Diameters: 4" x 1 Port
  • Drum Collection Bag (Dia. x L): Plastic Bag (350 x 980mm)
  • Canister Filter Type: 1 Micron
  • Filtration Efficiency: 0.2 – 2 Micron at 99.97%
  • MERV Rating: 12
  • Canister Diameter: 360mm (14.2")
  • Canister Length: 300mm (11-13/16")
  • Filter Surface Area: 1.6m² / 17.2ft²
  • Canister Cleaning: Manual Handle Crank 360°
  • Wheels: 2" Ball Caster
  • CSA Approved: Yes
  • Decibel Reading: 76 dB (At 9.8ft)
  • Assembled Dimensions (L x W x H): 29" x 14-13/16" x 50-3/8" | 736 x 376 x 1280mm


PRICE
$969.00

1
1
Ships in 4 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length29 in
Width14-13/16 in
Height50-3/8 in
Weight77 lbs
2 Hose Connection Diameter4 in
Air Inlet4 in
Connection Diameter4
Particle Size0.2 - 2 mic
Collection Bag Capacity38.6 ft³
Static Pressure4-7/8 in
1-Hose Connection Diameter4 in
Collection Bag Length38-5/8 in
Filter Bag/Canister Length11-13/16 in
Bag Diameter14 in
Impeller Diameter9 in

Product Details

Prewired Voltage110 V
Air Flow @ 4 Inches650 CFM
MaterialSteel
Phase1
Manufacturers Part NumberMDCBF1110C1M
Motor Horsepower1 HP
BrandLaguna
TypeDust Collection System
Remote ControlNo
ColorGray
Amperage8.4/15 A
Sound Rating76 dB
Number of StagesSingle
Capacity3.44 ft³
Voltage110 V
Dust Collector TypeCanister
Max Airflow650 CFM

Warranty

Warranty2 yr
