IGUS WW-10-40-10 DryLin W 10-40 Guide Carriage

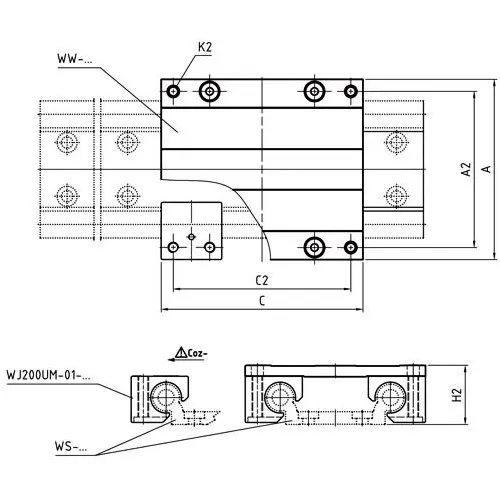

An additional DryLin® W solution is a combined rolling and sliding carriage. Because of the defined load direction the required drive force is reduced by a maintenance free roller bearing. This system represents an ideal solution for many hand powered applications under 112 lbs. Ideal for machine tool guards, furniture and aerospace applications. Features: Size (shaft diameter): 10 mm Roller made from plastic Low drive force needed Low cost Diagram Dimension Di - 10-1/5
