Hughes Emergency Cubicle Shower, Covered ABS Eye/Face Wash, SD32K45G
Write a Review
|
Questions & Answers (0)
Product Description

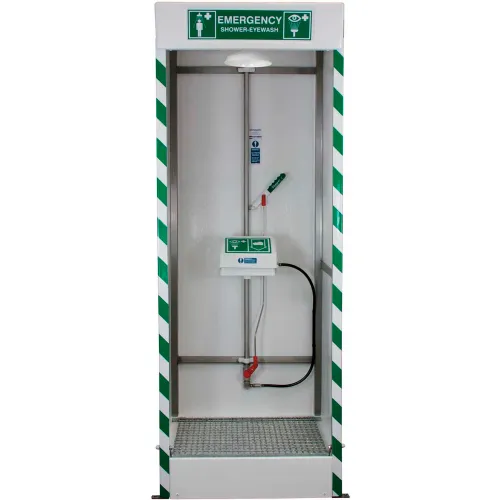

Designed for locations where space is at a premium or the emergency safety shower needs to be enclosed, this all-in-one ANSI-compliant combination cubicle shower and eye/face wash helps prevent overspray and is activated by hand upon entry. The cubicle shower has a stainless steel hollow section frame enclosed in GRP sheeting with stainless steel pipes for corrosion resistance and extended life. The exterior sheeting includes universal pictogram signs and green and white safety stripes.
Mounted on the inside of the cubicle for maximum benefit, the eye/face wash with high, ANSI-compliant flow rate includes aerated diffusers with fine mesh strainers and an individual flow controller which provide a soft, scrubbing action to the eyes and face. Covered bowl also ensures that the eyewash nozzles and bowl remain clean and free from contamination at all times-no dust covers needed. Activate by simply pulling down the cover. Easy-to-reach flow regulator valve positioned on side of bowl adjusts to suit the severity of the accident.
The system features a specially designed, high-performance quarter-turn ball valve made of 316L stainless steel to endure the harshest environments and site conditions. Low operating torque to open valve offers reliable, easy on/off operation when emergencies occur. Valve includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure. Includes an inspection record tag for recording test and service history.
Mounted on the inside of the cubicle for maximum benefit, the eye/face wash with high, ANSI-compliant flow rate includes aerated diffusers with fine mesh strainers and an individual flow controller which provide a soft, scrubbing action to the eyes and face. Covered bowl also ensures that the eyewash nozzles and bowl remain clean and free from contamination at all times-no dust covers needed. Activate by simply pulling down the cover. Easy-to-reach flow regulator valve positioned on side of bowl adjusts to suit the severity of the accident.
The system features a specially designed, high-performance quarter-turn ball valve made of 316L stainless steel to endure the harshest environments and site conditions. Low operating torque to open valve offers reliable, easy on/off operation when emergencies occur. Valve includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure. Includes an inspection record tag for recording test and service history.
PRICE
$13,352.67
1
1
Ships in 15 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Width | 40-13/64 in |
| Depth | 41-5/16 in |
| Height | 94-13/16 in |
| Weight | 255 lbs |
| Inlet Size | 1 Male Threaded in |
Product Details
| Type | Emergency Shower |
| Shower Flow Rate | 20 GPM psi |
| Color | White |
| Shower Head Material | Nylon |
| Eyewash Flow Rate | 3 GPM gal/min |
| Pipe Material | Stainless Steel |
| Eye/Face Wash Spray Heads | 2 |
| Mounting Location | Floor Mounted |
| Shower Head Activation | Pull Handle |
| Description | Emergency Cubicle Shower |
| Bowl Material | ABS Plastic |
| Eyewash Flow Pressure | Min. 29 PSI - Max 87 PSI psi |
| Eyewash Activation | Pull Down On Lid |
| Bowl Color Family | White |
| Brand | Hughes |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | ANSI Z358.1-2014 & EN15154 Compliant |
| ADA Compliant | No |
