Bradley Corporation

Model # :WBB2243066

MPN #: S19-304D2B

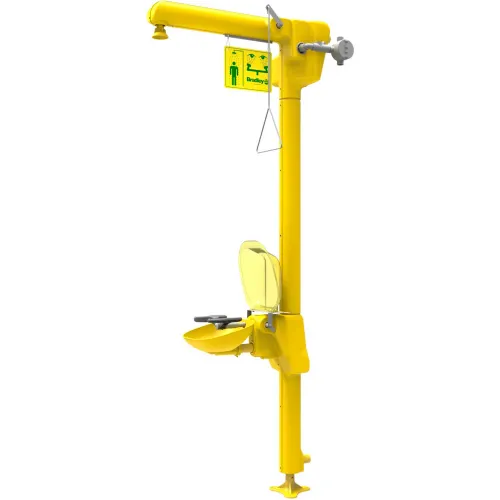

Bradley® Halo Heat Trace Shower & Eye/Face Wash, Class 1 Div 2, Bottom Supply, S19-304D2B

Product Description
Combination shower eye/face wash unit is a free standing floor mounted unit. Shower valve opens quickly by a pull rod with a triangular handle. Shower provides a superior wash down with a more even spray pattern. Eyewash operated by a large, highly visible push handle. Safe, steady water flow under varying water supply conditions from 30-90 PSI insured by integral flow control in the spray head assembly.

Features
  • 120 volt electric heat trace cable with pipe insulation regulated to -50° F (-45.5° C).
  • Rated for use in Class 1 Division 2, groups B, C, and D locations.
  • NEMA 4X standard.
  • Galvanized steel pipe with BradTect® safety yellow coating.
  • Hand activated.
  • 1-1/4" NPT water supply (top).
  • ABS plastic showerhead and Halo eye/face wash.
  • ABS plastic outer shell sealed with rivets.
  • Impact resistant plastic bowl and dust cover.
  • Indicator lights display power to unit and heating cable.
  • Certified to ANSI/ISEA Z358.1 standard and cCSAus listed when installed and used properly.
  • Manufacturer's limited warranty.


  • Includes
  • Halo Heat Trace
  • 120V electric heat trace cable
  • C1D2 Bottom Supply
  • 120V
  • Universal identification sign and inspection tag.
  • PRICE
    $7,579.00

    1
    1
    Ships in 14 Business Days
    Add or Change Zip Code(s)
    Easy online or call-in returns. Read return policy

    Weights & Dimensions

    Length16-1/2 in
    Width38-1/4 in
    Height93-3/4 in
    Weight104 lbs
    Bowl Diameter13 in
    Inlet Size1-1/4 NPT in
    Shower Head Diameter3/1/2008
    Outlet Size1-1/4 in

    Product Details

    Mounting LocationFloor Mounted
    MaterialPlastic Bowl, Yellow Polyurethane Finish, PVC, Brass Fittings, Galvanized Steel
    Manufacturers Part NumberS19-304D2B
    Eyewash Flow Pressure30 psi
    Bowl Color FamilyYellow
    BrandBradley Corporation
    TypeCombination Emergency Shower & Eye/Face Wash
    Shower Flow Rate22 GPM psi
    Shower Head MaterialABS Plastic
    Eyewash Flow Rate5.1 GPM gal/min
    Eye/Face Wash Spray HeadsABS Plastic
    Eye/Face Wash ActivatorPull Handle
    Shower Head Color FamilyYellow
    DescriptionHalo Heat Trace Shower & Eye/Face Wash, Class 1 Div 2, Bottom Supply
    Bowl MaterialABS Plastic

    Warranty

    Warranty1 yr

    Compliance & Certifications

    CertificationsUL; ANSI/ISEA Z3581.1; cCSAus
