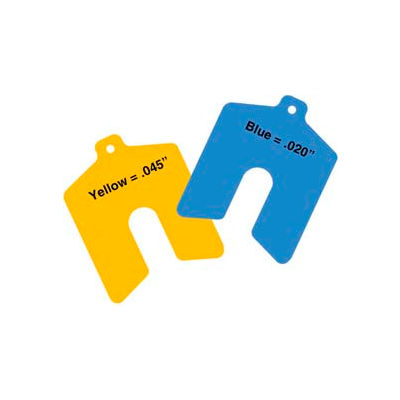

5" x 5" x 0.045" Yellow Sof' Shoe® Elastomer Shim (Pack of 10) - Made In USA

5" x 5" x 0.045" Yellow Sof' Shoe® Elastomer Shim (Pack of 10) - Made In USA

Item #: WBB514173

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $222.95

Save $11.15 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Made of a proprietary elastomer with unique flow and set characteristics to fill irregular gaps. Size D - 5" x 5". Slot Size - 1-5/8". Tab makes shim placement easier and safer, while eliminating the need to place hands under the machinery during installation or removal of shim. Yellow Sof' Shoe® elastomer shims are 0.045" thick, compress to 0.040", and absorb up to 0.020" of angularity. Precision Brand® Sof' Shoe® elastomer shim solves angular soft foot alignment problems on motors, pumps, generators, turbines, and other plant machinery in minutes. Sof' Shoe® cures angular soft foot and extends bearing and motor life. It is an inexpensive alternative when compared to more time consuming and expensive options such as milling the base or foot, hand cutting graduated shims, replacing base, or rebuilding base with poured epoxy. Each Sof' Shoe® elastomer shim's thickness has a 12 percent flat compression under standard bolt torque, yet will absorb the angularity of nearly half its thickness. Product also available in cut to length sheets with 38.5" width.

Product Specifications

  • WEIGHT0.4284
  • SIZED
  • COUNTRY OF ORIGINMade in USA
  • BRANDPrecision Brand®
  • CONSTRUCTIONElastomer
  • UOMPKG
  • PACKAGE QUANTITY10
  • MANUFACTURERS PART NUMBER49140
  • THICKNESS0.045"
  • SLOT SIZE1-5/8"
  • LENGTH5"
  • WIDTH5"
  • COLORYellow
