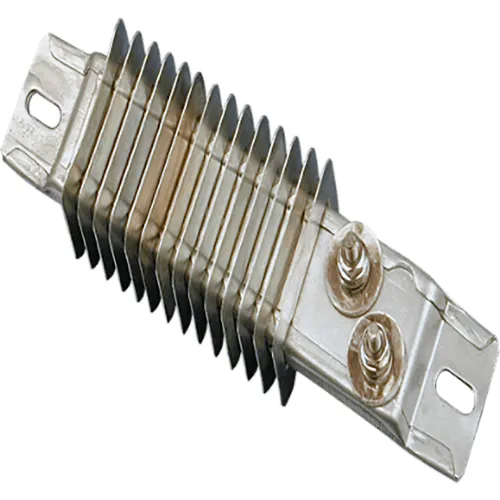

Caloritech™ Finned Strip Heaters are an excellent industrial heating product that can be easily controlled by using a heating control panel, mechanical thermostat, or cost-effective bi-metal thermostats that can be installed on the surface of the heater. Mounting holes are useful to mount the heaters securely on the wall housing with a terminal extending from the sheath for easy electrical connections.
Available Upon Request Special Order - Lead wires can be supplied through a special order to extend from one end of the strip heater which makes the installation more flexible as the temperature controller is easily adaptable to a specific configuration. The surface of our strip heaters can get quite hot, so we would need to know the operating temperature which is application dependent to select wire with a suitable temperature rating on the insulation jacket.
Aluminum Steel Sheath - The entire heater assembly is encased in an aluminized steel sheath and is compressed under high pressure. The sheath provides both corrosion resistance and an attractive appearance. Aluminized steel strip heaters are suitable for applications where the maximum sheath temperature does not exceed 1000°F (538°C). Fins are 0.022" (0.56 mm) thick cadmium-plated steel with a nominal four fins per inch. Fins are approximately 2" (51 mm) x 1 3/8" (35 mm).
Installation - Standard strip heaters listed are rated at 120V and 240V. All strip heaters can be used on voltages lower than listed for reduced wattage, and some designs can also be used on higher voltages – check the factory. Whenever the voltage to ground exceeds 300V, secondary insulators must be used.
Features:
- Heat Type: Electric Finned Strip Heater, Component Heater
- Special Wattage, Voltage, and Lengths - Check the factory if you require a custom-designed heater
- Lengthwise Bending - Consult the factory if lengthwise bending is required
- Finned Strip Heater - FS Series - Type SS strip heaters (with offset terminals) can be supplied with fins on request
- See Finned Strip Heater on page A29 for standard listings
- Secondary Insulators - Whenever the voltage to ground on the strip heater exceeds 300V secondary insulators must be used
- Applications: Surface Heating (platens, dies, molds, tanks, piping), Process Air Heating (drying cabinets, ovens, baking ovens, vacuum dehydrating ovens, moisture protection for motors), Dropping Resistors for line applications in railroads and load banks, Winterizing (hoppers, control panels, conveyors, ducts, car heating, thawing), Original Equipment (air conditioning, packaging and sealing equipment, space heating, laboratory equipment, food packaging, food warming equipment, ovens, presses, drying equipment)
- Watt Density: 29.8 Watts in² / 4.6 Watts cm²
- Slotted Hole Length & Width: (5/8)" L x (9/32)" W
- Length of Finned Section: 16-3/4 Inches / 475 mm
- Manufacturer's Warranty: 1 year limited warranty
- Safety Certifications: CSA, UL Safety Certified
