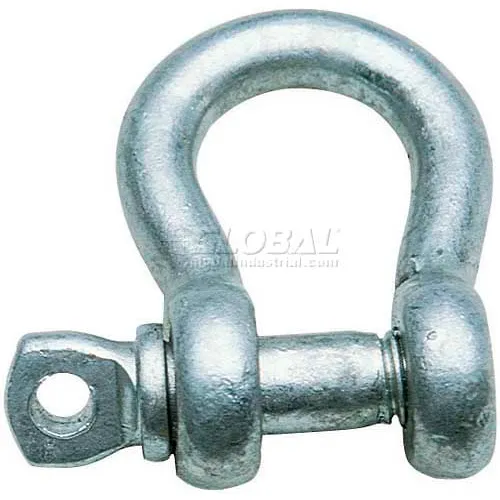

Elite Sales Galvanized Screw Pin Anchor Shackle - 1"
Our Screw Pin Anchor Shackles meet the performance requirements of Federal Specification RR-C-271D Type IVA, Grade A, Class 2, except for those provisions required of the contractor. Working load limit permanently shown on every shackle.
Elite Sales HG1SPAS 1" Galvanized Screw Pin Anchor Shackle - Pack of 5
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$179.95
4
4
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 3-13/16 in |
| Weight Capacity | 17,000 lbs |
| Weight | 5 lbs |
| Pin Diameter | 1-1/8 in |
| Dimension F | 2.63" |
| Dimension C | 3.81 in |
| Inner Width | 2-5/8 mm |
| Dimension A | 1" |
| Material Diameter - Chain Size | 1 |
| Dimension B | 1-1/8" |
| Dimension D | 1.69" |
| Dimension E | 2.38" |
Product Details
| Body Material | Galvanized Steel |
| Color | Silver |
| Style | Galvanized Screw Pin Anchor Shackle |
| Material | Galvanized Steel |
| Construction Type | Connectors & Links |
| Package Quantity | 5 |
| Manufacturers Part Number | HG1SPAS |
| Brand | Elite Sales |
Warranty
| Warranty | 30 Days for Material |
