- UPS Closed System 3-Speed Circulator Pump
- Automatic resetting thermal protection
- Multiple accessories for a variety of applications
- Whisper-quiet operation for sound sensitive installations
- Pump Connection: GF 15/26 Flange
- Made in the USA.

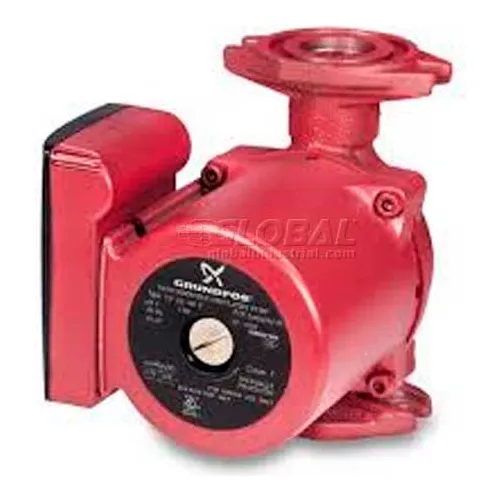

Grundfos UPS15-42F Circulator Water Pump 59896180, Cast Iron, 220V, 1/25 HP, 3 Speeds
Write a Review
|
Questions & Answers (0)
Product Description
Grundfos Series UP circulators are engineered to meet the demands of residential hot water and heating systems applications. The UPS 15-42 F works in a variety of closed loops applications variety of open and closed loop applications Features:
PRICE
$345.95
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 4 in |
| Width | 5-1/4 in |
| Height | 6-1/2 in |
| Weight | 4 lbs |
| Head | 0-15.4 ft |
Product Details
| Max Fluid Temperature | 230°F °F |
| Max Ambient Temperature | 104 °F °F |
| Run Capacitor Size | 2 μF/400 V |
| Number of Speeds | 3 |
| Pressure | 145 psi |
| Impeller Material | Composite, PES |
| Flow | 0-17.6 gal/min |
| Phase | 1 |
| Manufacturers Part Number | 59896180 |
| Respirator Connection Type | Cast Iron Flange |
| Brand | Grundfos |
| Horsepower | 1/25 HP |
| Color | Red |
| Hertz | 60 Hz |
| Min Fluid Temperature | 35.6° °F |
| Thermal Protection | Internal |
| Number of Poles | 2 |
| Voltage | 230 V |
| Housing Material | Cast Iron |
| System Type | Closed |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | UL, CSA |
