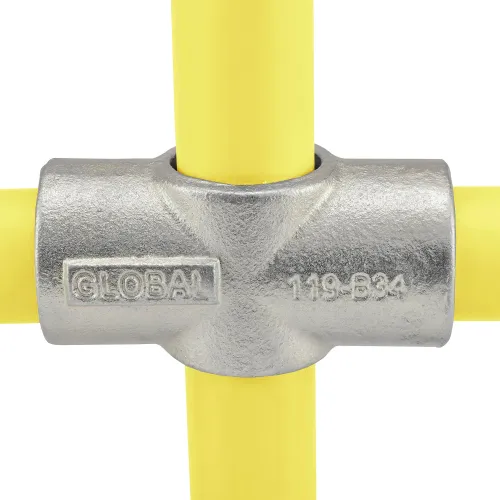

Global Industrial™ Pipe Fitting - Two Socket Cross 1-1/4" Dia.

KEE KLAMP® FITTINGS TWO SOCKET CROSS Usually paired with Type L25 to give a 90 degree joint between the middle rail and an intermediate upright on guardrailing. The upright passes through the fitting.

Global Pipe Fitting 90 Degree Elbow 1-1/2" Diameter 90 Degree Elbow Pipe Fitting is used to make a 90 degree connection between straight lengths of pipe. Elbow pipe fitting is typically found as an end joint when building pipe hand railing, guard rail or other pipe-based structures. Elbow joint is durably constructed from galvanized iron for corrosion resistance and long lasting strength. Fitting locks onto 1-1/2" diameter pipe with hardened set screws (included) for secure connection. Anchor hole is slightly larger than ½" diameter.

Kee Klamp® Fittings Crossover Coupling This fitting is designed to give a 90 degree offset crossover. As there are two socket set screws in the sleeve, this Kee Klamp fitting can be used where a join is required in the horizontal pipe. For economy, it is possible to use a Type 45 in place of the 145, using the 145 only where a join in the pipe occurs. When calculating the cutting lengths for pipe, dimension 'G' should be added to give the pipe length for the upright.

Global Pipe Fitting - Rail Flange 1-1/2" Diameter Rail Flange Pipe Fitting is commonly used to mount hand rail, guard rail or other pipe-based structures to the floor. Durably constructed of galvanized iron to provide maximum corrosion resistance and long lasting durability. Rail flange includes two hardened set screws in the vertical socket for greater side load stability. For safe installation, flange fixing holes should be in line with the applied load. For 1-1/2" diameter pipe. Anchor hole is slightly larger than ½" diameter.

Kee Klamp® Fittings Clamp On Crossover Designed to provide a 90° cross-over joint. Can be added to an existing structure. Pipe should not be joined within this fitting. For alternative fitting, see Type 45 or Type A45.
