Haws® AXION® MSR, 8317CTFP, 120 VAC Freeze-Resistant Combo Shower and Eye Wash Station
Write a Review
|
Questions & Answers (0)
Product Description

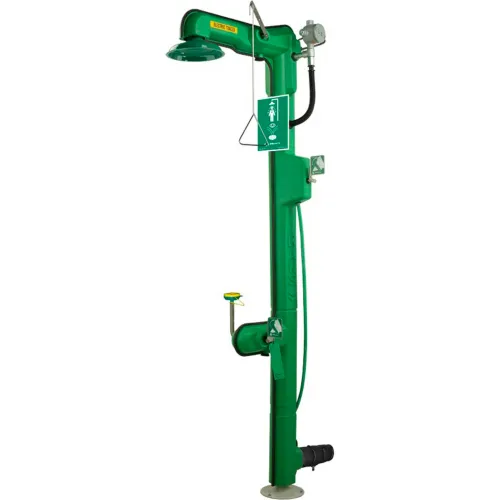

Haws® 120 VAC Freeze-Resistant Combination Shower & Eye Wash Station
Model 8317CTFP freeze protected 120 VAC cable heated combination shower and eye/face wash shall include the AXION® MSR hydrodynamic designed green ABS plastic 10-5/8" (26.9 cm) showerhead with integral self-regulating 20 gpm flow control, an AXION MSR eye/face wash head shall feature inverted directional laminar flow which achieves Zero Vertical Velocity™ supplied by an integral 4 gpm flow control, chrome-plated brass shower and eyewash ball valves equipped with stainless steel ball and stem, separate ball valve activated hose spray, and automatic thermal actuator freeze protection bleed valve. Unit shall also include thermostatically controlled electric heat traced cable protected by 3/4" (1.9 cm) insulation and an ABS plastic green jacket that prevents freezing down to ambient temperatures of -30° F, powder-coated cast-iron 9" (22.9 cm) diameter floor flange, universal sign, 1-1/4" IPS supply, and rated Class 1, Div 2, Group B, C & D with a .7 amp draw, 1.25 amp max. (Class I, DIV I is available as a special option)
Model 8317CTFP freeze protected 120 VAC cable heated combination shower and eye/face wash shall include the AXION® MSR hydrodynamic designed green ABS plastic 10-5/8" (26.9 cm) showerhead with integral self-regulating 20 gpm flow control, an AXION MSR eye/face wash head shall feature inverted directional laminar flow which achieves Zero Vertical Velocity™ supplied by an integral 4 gpm flow control, chrome-plated brass shower and eyewash ball valves equipped with stainless steel ball and stem, separate ball valve activated hose spray, and automatic thermal actuator freeze protection bleed valve. Unit shall also include thermostatically controlled electric heat traced cable protected by 3/4" (1.9 cm) insulation and an ABS plastic green jacket that prevents freezing down to ambient temperatures of -30° F, powder-coated cast-iron 9" (22.9 cm) diameter floor flange, universal sign, 1-1/4" IPS supply, and rated Class 1, Div 2, Group B, C & D with a .7 amp draw, 1.25 amp max. (Class I, DIV I is available as a special option)
PRICE
$4,185.00
1
1
Ships in 6 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 21 in |
| Width | 44 in |
| Height | 96 in |
| Shower Head Diameter | 11" |
| Inlet Size | 1-1/4 IPS in |
Product Details
| Flow Rate | 23.7 GPM gal/min |
| Type | Combination Emergency Shower & Eye/Face Wash |
| Shower Flow Rate | 20 GPM psi |
| Color | Green |
| Shower Head Material | ABS Plastic |
| Eyewash Flow Rate | 3.7 GPM gal/min |
| Series | AXION® |
| Eye/Face Wash Activator | Pull Handle |
| Mounting Location | Floor Mounted |
| Includes | Universal Identification Sign |
| Material | ABS Plastic |
| Description | AXION® MSR Freeze Protected Shower and Eye/Face Wash |
| Manufacturers Part Number | 8317CTFP |
| Eyewash Flow Pressure | 30-90 psi |
| Brand | Haws |
Compliance & Certifications
| ANSI Certification | Meets ANSI Z358.1 |
| ADA Compliant | No |
