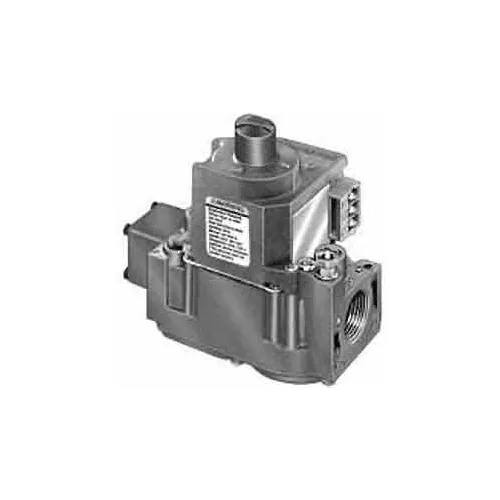

Honeywell Dual 2-Stage Intermittent Pilot VR8304Q4511, W/ 3/4"X3/4" Slow 17-35" Wc High

24V Standing Pilot Natural Gas Valve 3/4" x 3/4" Combination gas control for use in 24 VAC, gas-fired, standing pilot appliances with capacities from 30 to 300 cfh. Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment. Compact size. Provide two automatic valves. Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends. Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted. Meets codes requiring dual safety shutoff. ...

3/4" x 3/4" 24V Step Open Gas Valve Combination gas control for use in 24 VAC, gas-fired, standing pilot appliances with capacities from 30 to 300 cfh. Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment. Compact size. Provide two automatic valves. Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends. Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted. Meets codes requiring dual safety shutoff. Natural to LP ...

Honeywell Y8610U6006 - Y-Pack The Honeywell Y8610U6006 is a Y-pack containing S8610U3009 and VR8304M with 1/2 inch by 3/4 inch inlet/outlet, flange kit, and LP conversion kit. For use with 24 Vac gas-fired atmospheric furnaces, boiler and heating appliances. Features: The Y8610U6006 kits are for use with natural or LP gas: provides 100 percent pilot gas shutoff if pilot fails to light; after 6-minute delay, trial for ignition is repeated. The ignition trail/delay sequence is repeated until the appliance lights or call for heat is removed.

The Q390A thermocouples sense the pilot flame on standing pilot gas-fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential between it and the base to generate 30 millivolts. Includes Adapter and push-in clip. 11/32 32 male nut connector for Pilotstat safety control power units

Features Microprocessor-based integrated primary burner control for automatically fired gas, oil, or combination fuel single burner applications. Provides level of safety, functional capability and features beyond conventional controls Functions include automatic burner sequencing, flame supervision, system status indication, system or self-diagnostics and troubleshooting Subbase, amplifier, and PrePurge timer are required for operation Necessary accessories sold separately: PC interface, keyboard display module, DATA CONTROLBUS™ MODULE, remote display module, first-out expanded ...
