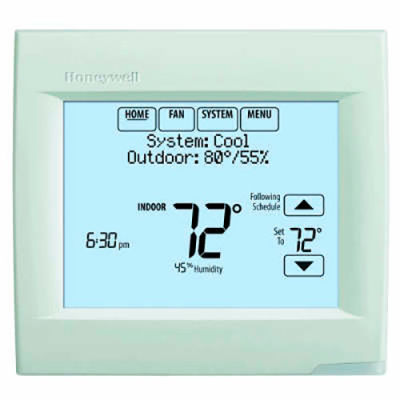

VisionPRO® 8000 Thermostat W/Redlink™ 3H/2C HP or 2H/2C CON. With IAQ Contacts, White

VisionPRO® 8000 Thermostat W/Redlink™ 3H/2C HP or 2H/2C CON. With IAQ Contacts, White

Item #: WBB921340

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $235.95

Save $11.80 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

VisionPRO® 8000 Thermostat W/Redlink™ TH8321R1001 - 2H / 2C Conventional (3H / 2C EIM) or 3H / 2C Heat Pump (4H / 2 EIM)

VisionPRO® 8000 with RedLINK™ technology is a touchscreen thermostat, 7 day programmable and selectable for residential or light commercial use. Controls up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional when used standalone; Up to 4 Heat / 2 Cool Heat Pump or Up to 3 Heat / 2 Cool Conventional when used with the Equipment Interface Module.

Features:

  • Thermostat works standalone or with the THM5421R1021 Equipment Interface Module or with the TrueZONE Wireless Adapter.
  • Smart Schedule - programs in seconds for any lifestyle.
  • Patented interview based programming and installer setup.
  • RedLINK™ wireless communication.
  • Increase profit per job by including RedLINK™ accessories that provide comfort and convenience. RedLINK™ accessories include the RedLINK™ Internet Gateway, Portable Comfort Control (PCC), Wireless Outdoor Sensor, Wireless Indoor Sensor, Wireless Entry/Exit Remote, Wireless Vent and Filter Boost Remote, TrueSTEAM™ humidifier with Wireless Adapter and TrueZONE® zoning panel with Wireless Adapter.
  • Selectable for residential and light commercial applications. Meets commercial code and is title 24 compliant.
  • Light commercial - commercial language (occupied and unoccupied), schedule holidays and custom events, remote setback, economizer and time of day. Remote Setback requires the THM5421R1021 Equipment Interface Module.
  • Plain language setup, no manual needed.
  • Alerts and User Interactions Log - Keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by a user error. Saves time in troubleshooting and points the technician in the right direction. The Alert and User Interaction Logs are viewable on a computer after you download them from the thermostat to a microSD card.
  • Customizable Service Reminders allow dealers to remind their customers when its time to call for service, when their warranty is expiring and to provide customized alerts.
  • MicroSD port for copying the Installer Setup, Customizable Reminders, Custom Events and Holidays to multiple thermostats.
  • MicroSD port for adding the dealer's contact information on the screen.
  • 1 assignable output on the TH8321 model to control humidification, dehumidification, ventilation or a stage of heating/cooling.
  • 3 assignable outputs on the Equipment Interface Module to control humidification, dehumidification, ventilation or a stage of heating/cooling. The TH8110 and TH8320 models require the use of a Wireless Indoor Sensor to control humidification and dehumidification.
  • 1 assignable input can be used with a wired outdoor, indoor or discharge sensor.
  • 4 assignable inputs on the Equipment Interface Module can be used with wired outdoor, indoor or discharge sensors, occupancy sensor for remote setback and dry contact devices to trip pre-packaged or custom alerts such as a full drain pan or water leak.
  • Extend wireless range of the Equipment Interface Module by connecting a THM4000R1000 Wireless Adapter to the ABCD terminals.
  • Dual powered - battery or hardwired (C wire).
  • Precise temperature control (+/- 1° F) for reliable and consistent temperature.
  • Multiple staging options to provide comfort or energy savings.

Product Specifications

  • BRANDHoneywell
  • WIDTH INCHES4-15/16
  • DEPTH INCHES1-1/8
  • HEIGHT INCHES4-5/8
  • COLORArctic White
  • TEMPERATURE - OPERATING RANGE °F32 to 120
  • TEMPERATURE CONTROL RANGE °F40 to 90 (Heat) / 50 to 99 (Cool)
  • VOLTAGE30 / 24 / 20 / 18 or 750 Mv.
  • HERTZ50 / 60
  • ELECTRICAL CONNECTIONSR, Rc, C, W-O/B, W2-Aux/E, Y, Y2, G, A-L/A, K, U1 U1, S1 S1
  • OPERATING HUMIDITY RANGE (%RH)5 to 90 (non condensing)
  • PROGRAMMABLE7 Day
  • SETTINGS PER DAY4
  • SETTINGS PER WEEK7
  • STAGES2H / 2C Conv 3H / 2C EIM or 3H / 2C HP 4H / 2 EIM
  • CHANGEOVER TYPEAutomatic / Manual
  • DESCRIPTIONTouchscreen Smart Thermostat
  • FOR USE WITH2H / 2C Conventional (3H / 2C EIM) or 3H / 2C Heat Pump (4H / 2 EIM) System
  • INCLUDESSmart Thermostat
  • LIMITED WARRANTY YEARS5
  • MANUFACTURER'S PART NUMBERTH8321R1001
  • HAZMAT INFORMATIONUn 3091 Lithium Metal Batteries Packed In/With Equipment
  • SWITCH POSITIONS (SYSTEM)Heat/Off/Cool/Auto/Em.Heat
  • SWITCH POSITIONS (FAN)Auto/On/Circ/Follow Schedule
Customer Review

Not Yet Reviewed

Product Q & A

There are no questions for this product.

Warranty

This product has a 60-month manufacturer's limited warranty for parts and a 60-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
