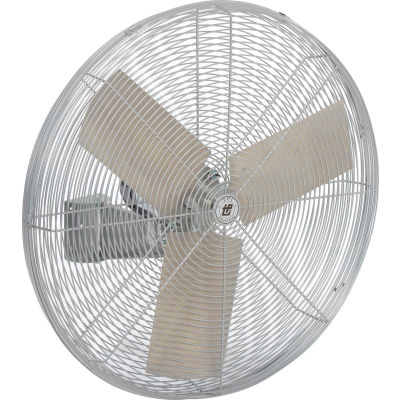

TPI AC30W, 30 Inch Wall Mount Fan Non-Oscillating 1/4 HP 7 4300 CFM 1 PH Totally Enclosed Motor

Rollover image to zoom in

Click image to enlarge

See all 19 items in product family

TPI AC30W, 30 Inch Wall Mount Fan Non-Oscillating 1/4 HP 7 4300 CFM 1 PH Totally Enclosed Motor

Item #: WB292267

Sold By: globalindustrial.com

Ships same day. Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

Price: $ 252.95
Product Information
Photo/Video Gallery
Warranty
Customer Review
Product Q&A
Accessories
Non-Oscillating Wall Fan
These quality fans include an enclosed permanently lubricated, PSC-type ball bearing single-phase motor for long life and optimum performance. 3 quiet aluminum blades are enclosed in double locking steel wire guards for safety. Pivot-action fan head allows vertical tilt angle adjustments. Meets OSHA standards, UL listed. Replace or upgrade fan heads with industrial quality air circulator heads. Includes 12'L SJT type, 3-conductor power cord. 120V. Horsepower rating based upon maximum speed/load.

Product Specifications

    • BRANDTPI
    • ASSEMBLYAssembled
    • CFM HIGH4,300
    • CFM LOW3,800
    • FAN DIAMETER INCHES30
    • WEIGHT LBS48
    • MANUFACTURER'S PART NUMBERAC30W
    • COLOR FINISHGray / Silver
    • CONSTRUCTIONSteel/Aluminum
    • HORSEPOWER1/4
    • FAN TYPEIndustrial
    • RPM HIGH 1,100
    • WATTS408
    • PHASE1
    • AMPS3.4
    • HERTZ (HZ)60
    • VOLTAGE120
    • SPEEDS2
    • MOTOR TYPETotally Enclosed
    • DRIVE TYPEDirect Drive
    • OSCILLATING/NON-OSCILLATINGNon-Oscillating
    • LIMITED WARRANTY YEARS1
    • APPROVALS OR CERTIFICATIONSUL Listed, OSHA Compliant
    • MOUNT TYPEWall
    • POWER CORD TYPESJT 3 Conductor
    • POWER CORD LENGTH FEET12
    • BLADE TYPEAluminum
    • BLADE QUANTITY3

Avg. Customer Rating: (3 customer reviews)

Write your own review

Sort by:
1 ...

3 Results

Fan

Your review: Quick set up

Pros: Quite and lots of air

Is this review helpful?

Wall fan

Your review: This fan moves a lot of air and is reasonably quiet.

Pros: Moves air well

Cons: The wall mount and fan are shipped separately and we did not know this and built a wall mount. It arrived the next day

Is this review helpful?

Nice product

Your review: Nice product at a fair price. It was nice to find that the fan and cage came preassembled (something rare today). The assembly of the bracket arm was very straight forward and installation. I installed 8 of these and when turned on, nearly all of them sucked the pull cord into the fan blades and broke it off. The fix was easy, as I had a roll of mason's line with me, and then tied a 3/8" nut to the bottom of the cord to weight it down. Overall, I am pleased with the fans as are the men that work under them.

Pros: preassembled, powerful

Cons: pull cord should be weighted

Is this review helpful?

Sort by:
1 ...

3 Results
