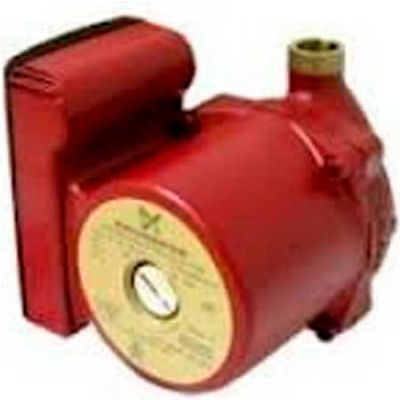

Grundfos UP15-10B7 Circulator Water Pump 59896226, Bronze, 115V, 1/25 HP

Grundfos UP15-10B7 Circulator Water Pump 59896226, Bronze, 115V, 1/25 HP

Item #: WBB1012666

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $323.95

Save $16.20 with 5% off when you use your Global Industrial Credit Card.

Quantity

Grundfos UP15-10B7 Circulator Water Pump 59896226, Bronze, 115V, 1/25 HP

The Grundfos circulator pumps, Series UP, are specifically designed for heating systems. The pumps are also suitable for circulation of hot domestic water and for circulation of liquid in cooling and air-conditioning systems.

Features:

  • Bronze and stainless steel construction.
  • Wet rotor design.
  • Composite impeller.
  • Eliminates and prevents corrosive effects of fresh water.
  • Maintenance-free, low energy consumption, easy to install, quiet running.
  • Improved performance and efficiency.
  • Pre-program usage times to save power.
  • No additional wiring required.
  • Adds to savings by operating pump by sensing the water temperature with optional timer and aquastat.
  • Made in the USA.


Product Specifications

  • BRANDGrundfos
  • LENGTH INCHES4
  • WIDTH INCHES5-1/8
  • HEIGHT INCHES6-3/8
  • WEIGHT LBS5.98
  • COLORRed
  • HOUSING MATERIALBronze
  • IMPELLER MATERIALComposite, PES
  • PRESSURE PSI145
  • VOLTAGE0.22
  • MAXIMUM AMBIENT TEMPERATURE °F104 °F
  • HERTZ60
  • HORSEPOWER1/25
  • CONNECTION TYPEBronze Sweat
  • APPROVALS OR CERTIFICATIONSUL, CSA
  • LIMITED WARRANTY YEARS1
  • MANUFACTURER'S PART NUMBER59896226
  • MODELUP15-10B7
  • FLANGE STANDARDUSA Sweat
  • AMBIENT MAX AT 176°F LIQUID176 °F
  • PORT TO PORT LENGTH INCHES6-3/8
  • PIPE CONNECTION3/4" Sweat
  • NUMBER OF POLES2
  • CAPACITOR SIZE - RUN2 μF/400 V
  • MAX. POWER INPUT25 W
  • HEAD FEET0-6.23
  • SYSTEM TYPEOpen
  • THERMAL PROTECTIONInternal
  • MOTOR PROTECTIONContact
  • FLOW U.S. GPM0-8.37
  • POS TERM BOX9H
  • MAX. AMPS0.22
  • MAX. WATTS25
  • NUMBER OF SPEEDS1
  • MAXIMUM FLUID TEMPERATURE °F219.2°F
  • MINIMUM FLUID TEMPERATURE °F35.6°
