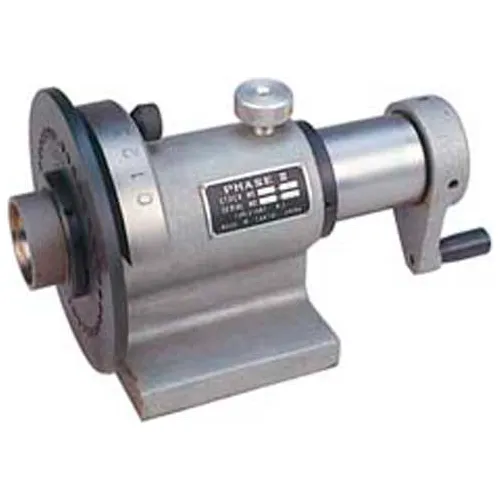

One degree indexing over 360 using 5-C Collets, makes this tool ideal for grinding, machining, layout, inspection, etc. Hardened and ground spindle is accurate within .0004".
Share
Spec Sheet
BESTSELLER
Model # :WBB1308792
MPN #: 2065000
Import 5C Rotating Indexing Fixture
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$81.95
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Dimensions | 4 x 4 Base 9 OAL in |
Product Details
| Style | Rotating |
| Type | 5C |
| Description | Indexing Fixture |
