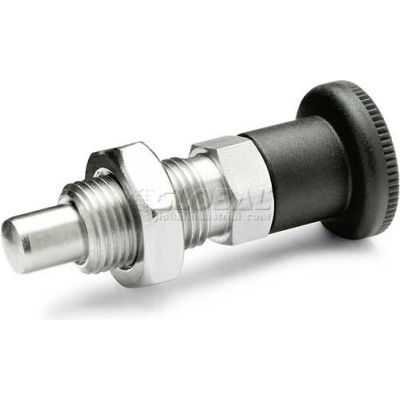

Indexing Plunger Multi Pin w/ Knob Lock Nut SS 4.0x12.5N Pressure M8x1 Thread 4x6mm Pin

Indexing Plunger Multi Pin w/ Knob Lock Nut SS 4.0x12.5N Pressure M8x1 Thread 4x6mm Pin

Item #: WBB1033134

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $18.50

Save $0.93 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

J.W. Winco GN717 Indexing Plunger w/ Knob Lock-Out SS 6.0x22.0N Pressure M12x1.75 Thread 8x8mm Pin

J.W. Winco GN717 Indexing Plunger w/ Knob Lock-Out SS 6.0x22.0N Pressure M12x1.75 Thread 8x8mm Pin

Pull Ring Retractable Plunger SS Body SS Nose 0.75x3lbs Pressure 3/8-16 Thread

Pull Ring Retractable Plunger SS Body SS Nose 0.75x3lbs Pressure 3/8-16 Thread

Pull Ring Retractable Plunger SS Body SS Nose 0.5x2lbs Pressure 1/4-20 Thread

Pull Ring Retractable Plunger SS Body SS Nose 0.5x2lbs Pressure 1/4-20 Thread

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Female Double Swivel Ring - UNC 3/8" - 16

Female Double Swivel Ring - UNC 3/8" - 16

Double Swivel Ring - UNC 5/8" - 11

Double Swivel Ring - UNC 5/8" - 11

Indexing Plunger Multi Pin w/ Knob Lock Nut SS 4.0x12.5N Pressure M8x1 Thread 4x6mm Pin

Type G with the threaded spindle is for applications where a specific knob or special receptacle is required for operation. The maximum heat resistance of the nylon plastic hand knob: 110°C or 230°F.

Features
  • Two retracting strokes l1 per plunger diameter
  • Identical dimensions l2 for GN 817 and GN 817.1 series
  • Defined thread length by an undercut at the end of the thread


  • Weights & Dimensions

    • Pin Length 6 mm in
    • Knob Diameter 16 mm in
    • Length 35 mm
    • Pin Diameter 4 mm in
    • Thread Size M8 x 1.0 in
    • Thread Length 16 mm in

    Product Details

    • Lock Out No
    • End Pressure Start 4.0 N
    • Description Indexing Plunger
    • Lock Nut Yes
    • Type Multiple Pin Length w/ Knob
    • End Pressure Full 12.5 N
    • Nose Material Stainless Steel
    • Brand J.W. Winco
    • Manufacturers Part Number 817-5-5-M10X1-G
    • Body Material Stainless Steel
