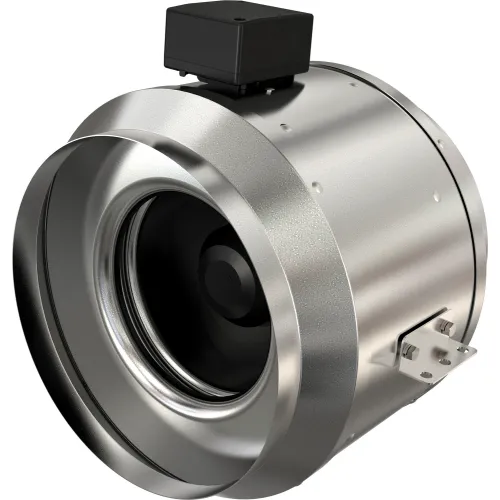

Fantech Inline Mixed Flow 10" Duct Fan FKD 10XL, 115V, 1266 CFM
Fantech FKD direct drive, mixed flow centrifugal fans blend the high flow of axial fans with the higher pressure, non-overloading characteristics of backward curved impellers. An excellent choice for exhaust or supply applications where quieter performance and easy installation are important. Perfect for commercial and institutional structures such as offices, hospitals, beauty salons, veterinary clinics as well as residential applications such as kitchen range hood exhaust. FKD straight-through inline design fans are available in a wide range of sizes for easy installation in duct sizes from 8" to 20". Fans can be mounted at any angle at any point along the duct work. Motors are capable of operating in airstream temperatures up to 140° F. Motor bearings are permanently sealed, self lubricating ball type.
Features:
Fantech FKD direct drive, mixed flow centrifugal fans blend the high flow of axial fans with the higher pressure, non-overloading characteristics of backward curved impellers. An excellent choice for exhaust or supply applications where quieter performance and easy installation are important. Perfect for commercial and institutional structures such as offices, hospitals, beauty salons, veterinary clinics as well as residential applications such as kitchen range hood exhaust. FKD straight-through inline design fans are available in a wide range of sizes for easy installation in duct sizes from 8" to 20". Fans can be mounted at any angle at any point along the duct work. Motors are capable of operating in airstream temperatures up to 140° F. Motor bearings are permanently sealed, self lubricating ball type.
Features:
- Mixed flow impeller
- 100% speed controllable
- Can be installed in any position
- External rotor motor
- Galvanized steel housing
- Three-year warranty
- Certified by AMCA Air, AMCA Sound and cULus
Product Details
- Number of Speeds Variable
- Amperage 4.48 A
- For Use With RPE10, WC15
- Drive Type Direct
- Material Galvanized Steel
- RPM High 2,850 rpm
- Voltage 115 V
- Description Inline Mixed Flow Duct Fan
- Speed Controllable Y
- CFM High 1267 CFM
- Motor Type ERM
- Phase 1
- Watts 485 W
- Brand Fantech
- Warranty 3 yr
- Hertz 60 Hz
- Manufacturers Part Number FKD 10XL
- Color Family Silver
- Sones 21
Weights & Dimensions
- Width 14 in
- Duct Size 10 in
- Length 15 in
- Height 15 in
- Weight 25 lbs
Compliance & Certifications
- Certifications AMCA Air, AMCA Sound, cULus
