BESTSELLER
Daylight

Model # :WBB3114696

MPN #: U25101

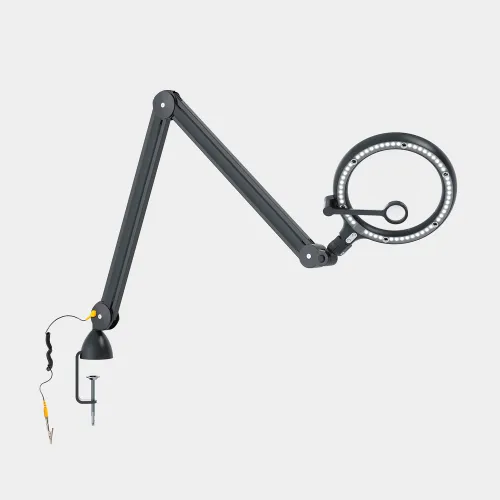

Daylight IQ ESD UV LED Magnifier Lamp, Black

Product Description
The iQ ESD™ is a 100% ESD-safe illuminated magnifier, independently certified for use in EPA (Electrostatic Protected Areas) to IEC 61340-5-1 & ANSI/ESD 20:20.A fantastic 2-in-1 light source, powerful Daylight 6,000K LEDs ensure clarity and shadow-free illumination while UV-A (365nm) LEDs are ideal for conformal coating inspection as well as thorough checking of soldered joints, welds and any other mechanical stress areas. With 2 brightness levels to suit your tasks, joints that hold any position and a large 17.5cm lens, the iQ ESD™ is the ultimate 2-in-1 ESD-safe illuminated magnifier. Take a look at our blog post to see why our iQ ESD Daylight & UV Magnifier is the best on the market. Warranty now extended to three years! Product registration within 30 days of purchase is required for third year warranty extension.

Key Features:
  • 2-in-1 light source: powerful Daylight 6,000K LEDs and UV-A (365nm) LEDs
  • 100% ESD-safe illuminated magnifier that is independently certified
  • Optical quality glass lens 7"
  • 3 dioptres magnification (1.75X) supplied with additional 12 dioptres (4X) swing arm magnifier
  • Exceptionally strong and durable carbon fiber head and joints
  • No adjustment necessary: specifically constructed using free motion joints instead of wing nuts, the iQ ESD will always hold its position
  • 2 brightness levels to adapt the lighting to your task at hand
  • Long reach of 47" so you position light exactly where you need it
  • 3 years guarantee
Technical Details:
  • Light source: LED
  • Lumens: 700lm
  • Lux output at 6": 6,000 and 4,000
  • Light color temperature: 6,000K
  • CRI: 95+
  • UV light source: LED UV-A
  • UV wavelength: 365nm
  • Energy consumption: 12Wv
  • Product color: Black
  • Maximum reach: 47"
  • Product weight: 8.3lb
  • Cable length: 78.7"
Ideal For:
  • ESD safe environments
  • Professional applications
  • Electronic components
  • Soldering
  • Checking conformal coatings on PCBs


PRICE
$899.00

1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Depth35-7/16 in
Cord Length6-1/4 ft
Overall Reach46-1/2 in

Product Details

Assembly RequiredYes
Lens7"
CRI95+
Magnification3X
Mounting LocationClamp
Wattage12 W
Hours50000
MaterialCarbon Fiber
Lens MaterialOptical Quality Glass, Esd Coating
Manufacturers Part NumberU25101
Lumens700
BrandDaylight
Lamp IncludedYes
Average Life10000 hr
Color Temperature6000 K
ColorBlack
Diopter3
Voltage12 V
Package Quantity1
Bulb TypeLED
Base TypeClamp

Warranty

Warranty3 yr
