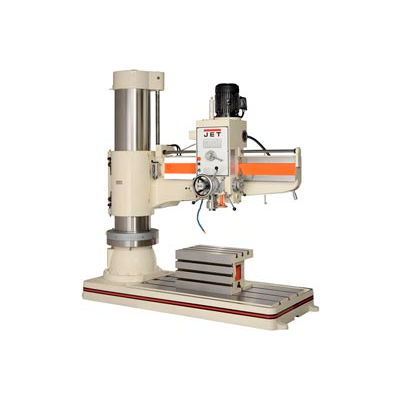

JET 320038 Model J-1600R 7.5HP 230V 5' Arm Radial Drill Press

JET 320038 Model J-1600R 7.5HP 230V 5' Arm Radial Drill Press

Item #: WBB230703

Not Yet Rated

Free Shipping

$68,928.57 up to 19% OFF

Price: $55,999.00

$9,333.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.
We will notify you when this product is back in stock.

Customers Also Viewed

The apex of heavy-duty JET Radial Arm Drill Presses are built to create precision holes in huge pieces and enhance productivity in even the busiest commercial shops. Operation is enhanced with power spindle feed and coolant systems, safety features and ergonomic design. JET Radial Arm Drill Presses are built to deliver under even the most demanding drilling specifications, and hold material fast for superior performance

Features:

  • The power train gears and spline shaft are made of the finest quality, heat treated and ground nickel-chrome steel, giving extra strength and smoothness to high torque loads
  • The spindle is made of the finest case hardened steel for extra strength and wear
  • The spindle is supported by double row taper roller and thrust ball bearings at the nose, with thrust and radial axis bearings at the top
  • The spindle is built to withstand exceptionally heavy drilling and boring loads and to insure maximum accuracy
  • Push button controls are all reduced to 110V
  • Electrical circuits are located in the built-in control box at the rear of the arm- this keeps the contols dust and humidity free while making them easily accessible for maintenance
  • Entire frame is made of Meehanite and high tensile strength cast iron to handle the heaviest of jobs
  • Counter balanced mechanism for spindle return
  • 12 speeds/3 feed rates make exotic materials easier to drill, bore and tap

Weights & Dimensions

  • Spindle Travel 27-7/8 x 19-5/8 x 15-3/4 in
  • Chuck Size 14-9/16 in
  • Table Size (L x W) 13 in
  • Column Diameter 2-7/8 in
  • Drills to Center of Circle 13 in
  • Quill Travel W/Powerfeed Engaged 17 in
  • Base Dimensions 2-1/2 in
  • Swing 2 HP in
  • Spindle Distance To Base 6 (.003 - .038 IPR) in
  • Distance Spindle To Column 50 in

Product Details

  • Description Radial Drill
  • Motor Voltage 230/460V, Prewired for 230V v
  • Phase 3 Ph
  • Quill Down Feed Rates (IPR) 1 HP
  • Drilling Capacity Mild Steel 2
  • Brand JET
  • Warranty 2-Year Warranty yr
  • Work Table Weight Capacity 17 lbs
  • Manufacturers Part Number 320038
  • Number of Spindle Speeds 12 (40 - 1920)
  • Motor 7-1/2 HP
