Baileigh Industrial

Model # :WBB3055573

MPN #: BA9-1002869

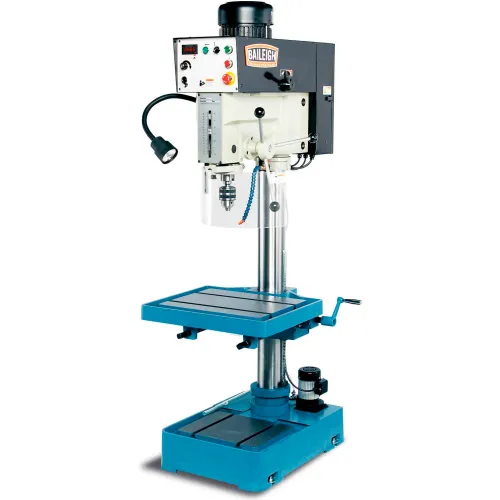

Baileigh Industrial Drill Press, 2 HP, Single Phase, 220V, DP-1250VS

Product Description
Built to last for years, the DP-1250VS floor drill press draws strength from its sturdy base and column that won't flinch during the heaviest drilling sessions. With a 20.8" swing, this variable-speed drill press will prove an ideal investment for any machinist or fabricator.
  • 2 hp motor runs on just 220 volts of single-phase power.
  • Tackles a maximum drilling capacity of 1.25" mild steel.
  • Heavy duty spindle transfers power to the#4 Morse taper tooling.
  • Speed potentiometer dial controls powerful inverter-driven head.
  • Variable drilling speed, ranging from 85 to 2000 rpm, lets you choose the right setting to suit your application.
  • Digital readout displays actual spindle rpm, ensuring precise results time after time.
  • Features an auto-reversing tap function with up to .75" capacity.
  • Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions.
  • Base and 22" x 18.5" table are made of a heavy iron casting to increase rigidity.
  • Very large .625" T-slots let a vise or fixture securely hold your material.
  • Coolant system, stored in the base, sprays out at the end of the spindle behind the splash and safety guard to extend drill bit and tap lifespan.
  • Covered by a 1-year parts warranty and lifetime technical support by phone from Baileigh's team of experienced reps.
  • Need it soon? We keep the DP-1250VS in stock for quick shipments.


PRICE
$6,829.00

1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Tapping Capacity Mild Steel3/4 in
Size24 x 36 x 80 in
Max Distance Spindle to Table36.41 in
Spindle Travel5.9 in
Base Work Table27 x 19 in
Base Dimensions27 x 19 in
Drills to Center of Circle20 in
Quill Travel5.9 in
Quill Diameter3 in
Table Size (L x W)22 x 18.75  in
Swing20.8 in
Belt Table Size (L x W)22 x 18.5 in
T-Slots Number And Size2@ 0.625 in
T-Slot Centers7.4 in
TaperMT4
Max Spindle Distance to Table36.41 in
Spindle Distance To Base48.22 in
Distance Spindle To Column48.22 in

Product Details

Drilling Capacity Mild Steel1-1/4"
Motor Voltage220 V
Phase1
Manufacturers Part NumberBA9-1002869
Motor Horsepower2 HP
Spindle TaperMT4
BrandBaileigh Industrial
Drilling Capacity Cast Iron1.5"
Number of Spindle Speeds85-2000 RPM
StyleFloor Drill Press
Country of OriginImport
Range of Spindle Speeds85 to 2000 rpm
