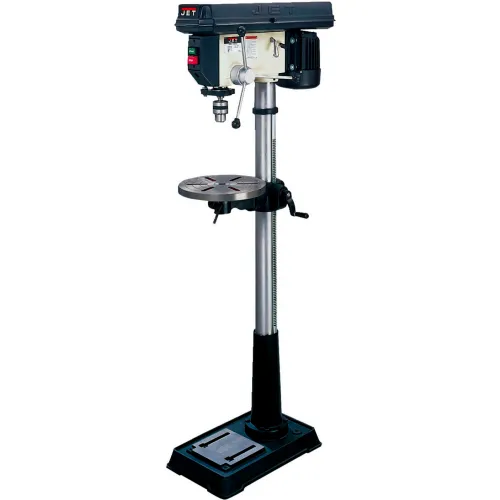

The JET JDP-17MF Floor Drill Press is a true woodworker's drill press. With 16 speeds, it lets you choose the best speed for the job. It comes equipped with a quick release crank operated worktable, worklight, X-pattern mounting grooves, depth stop, and adjustable tension spindle return spring which is ideal for repetitive drilling of the same depth. 16 speeds lets you choose the best speed for the job. Quick release crank operated worktable height adjustment rotates + or - 45° for versatility. Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes. "X" pattern mounting grooves in table allow mounting a fence when table is in reverse position. Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments. JDP-17MF, 16-1/2" Floor Drill Press, 5/8" Capacity, 3/4HP,16 Speed.
JDP-17MF, 16-1/2" Floor Drill Press, 5/8" Capacity, 3/4HP,16 Speed
|
Questions & Answers (0)
Product Description
PRICE
$1,505.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Table Size (L x W) | 13-3/4 in |
| Swing | 16-1/2 in |
| Size | 16-1/2 in |
| Base Size | 11-1/8 x 19-5/8 in |
| Chuck Size | 5/8 in |
| Column Diameter | 3-1/8 in |
| Spindle Travel | 4-3/8 in |
| Drilling Capacity | 5/8 in |
| Max Spindle Distance to Table | 29-1/8 in |
| Spindle Distance To Base | 49 in |
Product Details
| Amperage | 9/4.5 A |
| Spindle Speed | 200 - 3630 RPM rpm |
| Style | Floor |
| Motor Voltage | 115/230 V |
| Phase | 1 |
| Manufacturers Part Number | JT9-354169 |
| Prewired | 115V |
| Motor Horsepower | 3/4 HP |
| Spindle Taper | MT-2 |
| Brand | JET |
Warranty
| Warranty | 5 yr |
