JET

Model # :WBB3169411

MPN #: JT9-690144-2

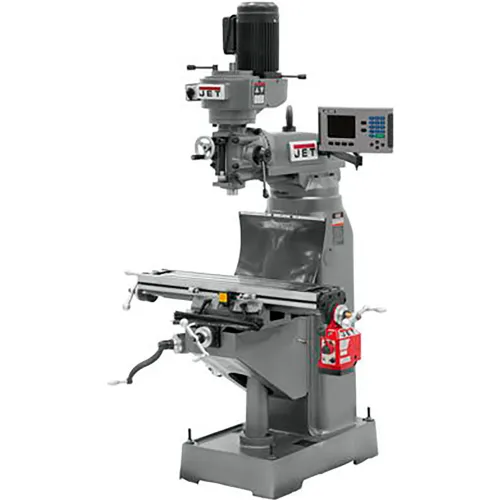

JET® JVM-836-1 Milling Machine with Acu-Rite 203 DRO & X-Axis Powerfeed, 1-1/2 HP, 115/230V

Product Description

The precision bored and honed milling head, coupled with the hardened and ground 8" x 36" table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET® JVM-836 has features you've come to expect that are backed by the industry-leading JET® Two Year Warranty.

Features:
  • Graduated scale on column
  • Hardened and ground precision table
  • Head tilts left or right
  • High precision spindle bearings
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision bored and honed milling head
  • Precision ground dovetail ways


PRICE
$21,529.00

1
1
Ships in 12 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length55
Width52 in
Height78 in
Weight1617 lbs
Table Size (L x W)7-7/8 x 35-3/4 in
Collet Capacity1/8 - 7/8 in
Quill Diameter3-3/8 in
Table Longitudinal Travel22-1/4 in
Table Cross Travel9-1/2 in

Product Details

PowerfeedX-Axis
Number of Spindle Speeds5
Style TypeStep Pulley R9
Motor Voltage115/230 V
DROAcu-Rite 203
Range of Spindle Speeds240 - 1,550 rpm
Phase1
Manufacturers Part NumberJT9-690144-2
Prewired115
Motor Horsepower1-1/2 HP
BrandJET

Warranty

Warranty2 yr
