King Electric

Model # :WBB3080872

MPN #: KB2415-1-PLTMX-FB

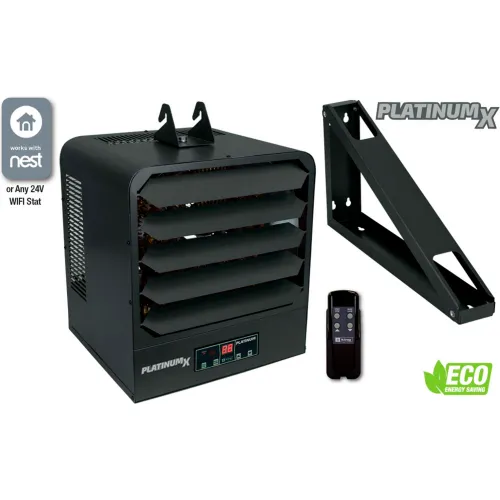

King Electric KB PlatinumX Unit Heater,240V 15KW 1-Phase with Fuse Block, 24V Control

Product Description
King's KB PlatinumX series unit heaters are the most full-featured unit heaters on the market, with in-built electronic thermostat for accuracy and remote control for simple operation. Comes standard with a provision for adding an optional 24V thermostat for remote temperature control, making it compatible with Nest Thermostats. Includes integrated summer fan only and thermostat timer modes, the KB PlatinumX has you covered.

Designed for use as primary or supplemental heat sources in large or exposed areas, including high-rise buildings, stores, warehouses, garages, water treatment and fire room vaults to prevent freezing. Spiral finned steel elements and high CFM ensure even air distribution producing cooler element operation, prolonging heater life. By combining the highest quality components, with a dynamically balanced fan blade, the KB PlatinumX unit heater will provide years of trouble-free service. Includes universal wall/ceiling bracket for simple installation.

  • Energy-Saving PlatinumX electronic temperature controller
  • Built-in provision for optional 24V remote thermostat
  • Compatible with NEST or any 24V WIFI thermostat
  • Remote control Included with wall holder
  • Large LED display
  • Summer fan only & timer modes
  • Adjustable louvers to direct air
  • 20 gauge electro galvanized steel construction with a rust inhibiting baked enabled finish
  • Aluminum axial fan blade
  • Patented thermal overload Smart Limit Protection®
  • Built-in fan delay to dissipate heat
  • Spiral fin, metal sheath elements
  • High mass steel fin heat exchanger
  • Permanent lubricated unit bearing motor
  • Universal wall/ceiling bracket Included
  • Draws 13% less amps & 25% less wattage when operated at 208V
  • Proudly Made in the USA with U.S. & global materials
  • 5-Year Limited Warranty


  • PRICE
    $2,479.00

    1
    1
    Ships in 12 Business Days
    Add or Change Zip Code(s)
    Easy online or call-in returns. Read return policy

    Weights & Dimensions

    Length15 in
    Width18 in
    Height16-1/2 in
    Weight50 lbs

    Product Details

    TypeHorizontal Fan Forced Heater
    CFM925 CFM
    ColorBlack
    Amperage54.1/62.5 A
    Mounting LocationWall or Ceiling
    Wattage15000 W
    Voltage208/240 V
    MaterialSteel
    Phase1
    Manufacturers Part NumberKB2415-1-PLTMX-FB
    BTU51195 BTU
    Control TypeRemote Thermostat
    DischargeHorizontal
    BrandKing Electric

    Warranty

    Warranty5 yr

    Compliance & Certifications

    CertificationscULus
