Includes parts to convert a rigid base mounted motor to NEMA D face with base. Shaded frame indicates cast iron motor kits for 150 and 170 series motors. NOTE: The D Flange Kits can only be used on rigid base motors. They will not fit NEMA C face motors.
Share
Spec Sheet

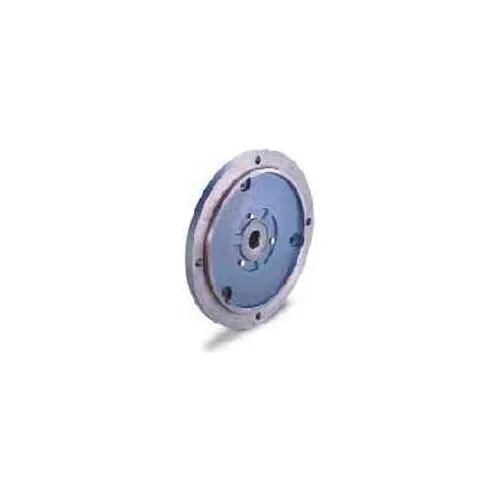

Leeson Motors 210 TEFC D-Flange Endbell W/Lb
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$445.95
1
1
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Weight | 14 lbs |
Product Details
| Frame | 213T-215T |
| Enclosure Type | Totally Enclosed |
| Applications | Metric Mounted - Gear Reducers, Pumps, Machine Tools, Fans And Blowers, Material |
| Brand | Leeson |
