Our D-Flange Kits include the necessary parts to convert a rigid base mounted motor to NEMA D-Face with base. The D-Flange kits may only be used on rigid base motors. They will not fit on NEMA C-Face motors.
Share
Spec Sheet

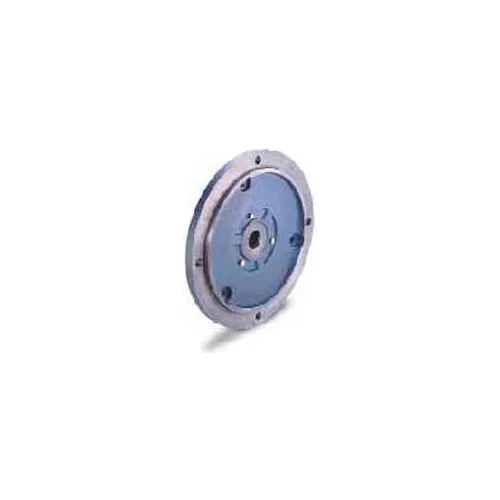

Leeson Motors NEMA D Flange Kits Steel And Cast Iron Frame Motors 182T-184T, Open / Enclosed
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$369.95
1
1
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Weight | 12 lbs |
Product Details
| Frame | 182T-184T |
| Enclosure Type | Open/Drip Proof |
| Applications | Dependant Upon Motor Application |
| Brand | Leeson |
