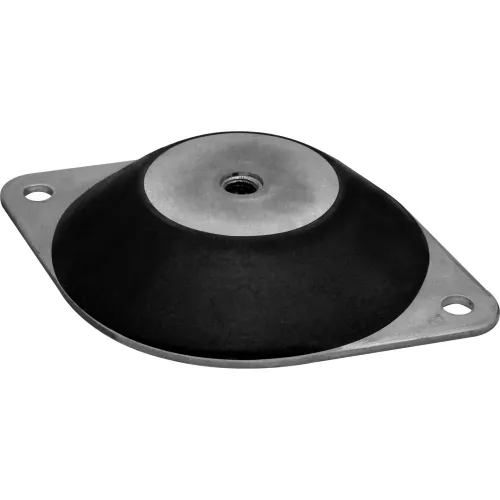

Vibra Systems LF 4045 - Low Profile Compression Mount Double Deflection 11 Lbs. Max Load

RMD Series are elastomeric mounts which provide effective vibration control for all types of rotating machines. The RMD Series double deflection rubber in shear mounts are color coded for identification of loading capacity and prevents installation errors. The RMD Series have ribbed and non-skid bases. No bolting of anchor bolts is required for machines that have no lateral motion.

Features: Reduce Shock and Vibration Easy to install with no maintenance Applications: Fail-safe operation of electronic, electro-mechanical, and transportation equipment Isolate mounted equipment from external shock and vibration Applicable for all-terrain vehicles, shipping containers, compaction and construction equipment

Vibra Systems VSCM-4 - Plated Cup Mount 2100 Max Load Lbs Plated Steel VSCM / CMSS Compression-shear cup mount with base provides excellent protection against vibration and shock. Due to this mount's ability to provide isolation to both vertical and horizontal forces it is used in a wide variety of industrial applications. Recommended applications include: Industrial machinery, centrifuges, numerical control equipment, blowers, railroad equipment, converters, transformers, combustion engines, motors, control panels, marine and industrial generator sets, HVAC, pumps, factory production ...

HSA series spring hangers are large diameter steel springs housed in rectangular steel housings. Assembly incorporates dual (steel & elastomer) washers for uniform load distribution and high frequency isolation. Springs have a 50% additional travel to solid load as per the ASRAE recommendations. Spring hangers are used for hanging fan coil units, air handling units, fans, pipes, and ducts. These spring hangers are normally used for critical areas where noise and vibration both need to be controlled.

Type "Y-1" series mounts with one inch deflection solve troublesome vibration problems. These mounts are preferred over most rubber mounts due to the high static deflection of the springs. "Y-1" type spring mounts are designed for noise and vibration control applications in critical areas on concrete or wooden floors. The Y-1 mount features a three piece cast iron housing for the spring. The mounts are provided with slotted mounting holes and a non-skid elastomeric acoustic pad on the base for bolting to the floor. Resilient elastomeric snubbers on the inner panel prevent metal to metal ...
