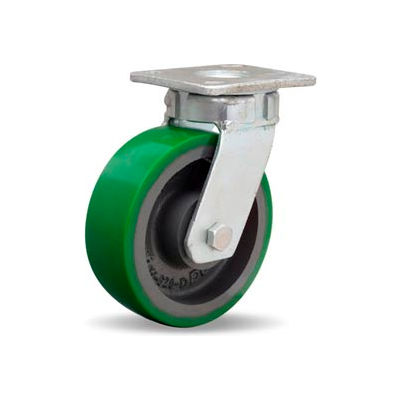

Hamilton® Endurance™ Kingpinless Swivel 6 x 2 Duralast™ Ball 1200 Lb. Caster
This Endurance caster represents the "best of breed" in kingpinless-style design. The top plate and inner raceway are formed from one piece, providing a superior raceway for shock conditions. Once former, the raceways are CNC-machined and then induction hardened to ensure a uniform depth in hardness of the swivel raceway. A sealing cap is welded to the outer race to assure protection from foreign material and to keep grease in the raceway.
This Endurance caster represents the "best of breed" in kingpinless-style design. The top plate and inner raceway are formed from one piece, providing a superior raceway for shock conditions. Once former, the raceways are CNC-machined and then induction hardened to ensure a uniform depth in hardness of the swivel raceway. A sealing cap is welded to the outer race to assure protection from foreign material and to keep grease in the raceway.
Product Specifications
- WIDTH INCHES2
- HEIGHT INCHES7-1/2
- CAPACITY LBS1200
- BEARING TYPEBall
- BOLT SPACING INCHES2-5/8" to 3" x 3" to 3-5/8"
- BRANDHamilton
- CASTER RIG TYPEKingpinless
- CASTER TYPESwivel Plate
- MANUFACTURERS PART NUMBERS-52K-6DB
- MOUNTING BOLT HOLE DIAMETER INCHES3/8
- PLATE SIZE4-1/2" x 4"
- REFERENCE #S-EC-6DB
- REPLACEMENT PARTW-620-DB-1/2
- SWIVEL RADIUS INCHES1-9/16
- TYPEEndurance
- WHEEL CONSTRUCTIONPolyurethane
- WHEEL DIAMETER INCHES6
- WHEEL TYPEDuralast
