AmScope SM-3TX-54S-3M 3.5X-45X LED Boom Stand Stereo Zoom Microscope with 3MP Camera

AmScope SM-3TX-54S-3M 3.5X-45X LED Boom Stand Stereo Zoom Microscope with 3MP Camera

Item #: WBM99620

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • Global Industrial OTG Visitor Safety Glasses, Clear Frame, 1 Each - Pkg Qty 12

    $15.00

  • Unisex Lab Coat - White L

    $22.25

$1,010.99 up to 27% OFF

Price: $735.99

$122.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $735.99 or save 5% on purchase.

Quantity

Customers Also Viewed

AmScope SM-3TX-54S-3M 3.5X-45X LED Boom Stand Stereo Zoom Microscope with 3MP Camera

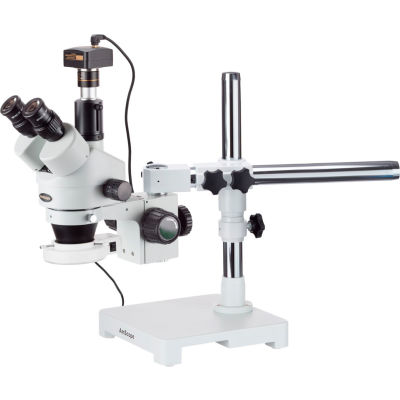

This 3.5X-45X trinocular stereo zoom microscope is on boom stand. It comes with a trinocular head with super widefield optics, a heavy-duty single-arm boom stand, a 54-LED ring light with dimmer, and a 3MP color digital camera. It offers crystal clear erect stereo images, 2-1/2" (65mm) super widefield of view, 13:1 large magnification zoom range and 8" (200mm) large working distance. The high-eyepoint optical design ensures an easy and comfortable observation for all users including eyeglass wearers.

The digital camera captures still images and video, and allows you to view a live stream on your PC. The boom stand gives your microscope the flexibility to cover large working area. The intensity-adjustable LED ring light provides bright, even and cool light illumination.

Features:
  • A 3.5X-45X Continuous Zoom Magnification Microscopy System on Boom Stand
  • 54-LED Ring Light and 3MP Color Digital Camera Included
  • 54-LED Bright, Even and Cool Lighting Illumination
  • 45 Degree Inclined Trinocular Head with SUPER Widefield High-Eyepoint Eyepieces
  • Erect Stereo Sharp Images over a SUPER Widefield of View
  • Full Optical Glass Elements
  • Precise Ground Glass Lenses
  • High Resolution with Great Flatness and Contrast
  • Crystal Clear Original True Color Images
  • 30mm SUPER Widefield WF10X/20 Eyepieces
  • Large Working Distance
  • Accurate Alignment Ensuring Fatigue-Free Observation
  • Both Ocular-Tubes with Adjustable Diopter
  • Adjustable Interpupillary Distance
  • Versatile Boom Stand Covering Large Working Area
  • Heavy-Duty Cast Steel Stand Finished with Stain Resistant Enamel
  • Rugged Solid Cast Steel Base
  • All Metal Mechanical Components
  • Rubber Eye-guards Included
  • Mounting Adapter for LED Ring Light Included
  • Camera Adapters for Fitting All Other Microscopes Included
  • Manufactured Under ISO 9001 Quality Control Standard
  • Excellent Five (5) Year Factory Warranty
Specifications:
  • Head: 45 degree inclined 360 degree swiveling trinocular
  • Eyepiece: 30mm Super widefield high-eyepoint WF10X/20
  • Objective: 0.7-4.5X
  • Barlow Lens: 0.5X
  • Zoom Range: 13:1
  • Diopter Adjustment: +/-5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
  • Working Distance: 8" (200mm)
  • Widefield of View (Maximum): 2-1/2" (65mm) in diameter, super widefield
  • Illumination: 54-LED
  • Power input: 110-240V, 50-60Hz, Automatic Switching
  • Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base
  • Accessories: eye-guards
Camera Specifications:
  • Sensor: Aptina MT9T001
  • Sensor Type: CMOS
  • Sensor Size: 6.55x4.92mm
  • Pixel Size: 3.2
  • Resolution: 3.1MP
  • Frame Rate: 8@2048x1536, 22@1024x768, 43@680x510
  • Sensitivity: 1.0V/lux-sec
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
Software Specifications:
  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Product Specifications

  • BRANDAmScope
  • MANUFACTURER PART NUMBERSM-3TX-54S-3M
  • DESCRIPTIONTrinocular LED Stereo Zoom Microscope with 3MP Camera
  • MATERIALMetal
  • COLORWhite
  • SENSORCMOS
  • MAGNIFICATION RANGE3.5X-45X
  • FIELD VIEWSuper Widefield
  • HEAD TYPETrinocular
  • OBJECTIVE0.7-4.5X
  • EYEPIECE MAGNIFICATION10X
  • EYEPIECE30mm
  • CAMERA PIXEL3MP
  • LIGHT SOURCELED
  • NUMBER OF LIGHT BULBS54
  • POWER SUPPLY110V/220V
  • TYPEStereo Microscope
  • REDUCTION LENS0.5X
  • OPERATING SYSTEMWindows XP/Vista/7/8/10, Mac OSX, Linux
  • STAND ARMSingle
  • STAND TYPEBoom-Arm Stand
  • PACKAGE QUANTITY1
  • LIMITED WARRANTY5 Years
  • APPLICATIONIndustrial Inspection, Engraving, Dissecting, Dental Lab, Teaching/Training
