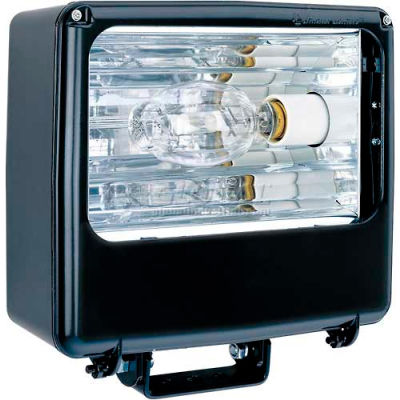

Metal Halide Floodlight w/ Lamp, 400w, Super SCWA Pulse Start Ballast, Horizontal Distribution
Intended Use:
For recreation areas, parking lots, building facades and car lots.
Features:
Housing Compact, soft-corner, die-cast aluminum housing and front cover. Front bezel is fully sealed with one-piece, bonded silicone gasket. Lens is thermal- and shock-resistant, clear, tempered glass. Standard finish is dark bronze (DDB) corrosion-resistant polyester powder. Optics TA2: vertical lamp with one-piece, hydroformed, anodized aluminum reflector. Two-position adjustable socket. RA2: horizontal lamp with anodized specular aluminum reflector. Both have sealed optic chamber to inhibit entrance of outside contaminants. Electrical Components mounted to cast-aluminum housing for maximum heat-dissipation. Ballast is high-reactance, high-power factor (70-150W HPS) or constant-wattage autotransformer (175 and above HPS, MH), copper wound and 100% factory tested. UL Listed. Socket Porcelain, vertically or horizontally oriented mogul-base socket with copper alloy, nickel-plated screw shell and center contact. UL Listed 1500W, 600V, 4KV pulse rated. Installation Corrosion-resistant, heavy-duty painted steel yoke. External screws treated for corrosion resistance. Above-horizontal aiming standard.
Listings:
UL Listed (standard) (ambient temperature 25°C for 320W and above and 200S, 40°C for 250W and below). CSA Certified or NOM Certified (see Options). UL Listed for wet locations. IP65 rated.
Construction:
Housing: Compact, soft-corner, die-cast aluminum housing and front cover. Front bezel is fully sealed with one-piece, bonded silicone gasket. Lens is thermal- and shock-resistant, clear, tempered glass. Finish: Dark bronze polyester powder finish standard. Additional architectural colors available; see www.lithonia.com/archcolors.
Optics:
TA2: vertical lamp with one-piece, hydro-formed, anodized aluminum reflector. Two-position adjustable socket. RA2: Horizontal lamp with anodized specular aluminum reflector. Both have sealed optic chamber to inhibit entrance of outside contaminants.
Electrical:
Components mounted to cast-aluminum housing for maximum heat-dissipation. Ballast:
All ballasts are 100% factory tested. High reactance, high power factor for 150W and below. Constant wattage autotransformer 175W and above. MH: 150W and below are standard with pulse-start ignitor technology. Super CWA Pulse STRT ballasts, 88% efficient and EISA legislation compliant, are required for 151-400W (must order SCWA option) for U.S. shipments only. CSA, NOM or INTL required for probe start shipments outside the U.S. Socket: Porcelain, vertically or horizontally oriented mogul-base socket with copper alloy, nickel-plated screw shell and center contact. UL Listed 1500W, 600V, 4KV pulse rated.
Installation:
Corrosion-resistant, heavy-duty, painted steel yoke. External screws treated for corrosion resistance. Above-horizontal aiming standard.
Intended Use:
For recreation areas, parking lots, building facades and car lots.
Features:
Housing Compact, soft-corner, die-cast aluminum housing and front cover. Front bezel is fully sealed with one-piece, bonded silicone gasket. Lens is thermal- and shock-resistant, clear, tempered glass. Standard finish is dark bronze (DDB) corrosion-resistant polyester powder. Optics TA2: vertical lamp with one-piece, hydroformed, anodized aluminum reflector. Two-position adjustable socket. RA2: horizontal lamp with anodized specular aluminum reflector. Both have sealed optic chamber to inhibit entrance of outside contaminants. Electrical Components mounted to cast-aluminum housing for maximum heat-dissipation. Ballast is high-reactance, high-power factor (70-150W HPS) or constant-wattage autotransformer (175 and above HPS, MH), copper wound and 100% factory tested. UL Listed. Socket Porcelain, vertically or horizontally oriented mogul-base socket with copper alloy, nickel-plated screw shell and center contact. UL Listed 1500W, 600V, 4KV pulse rated. Installation Corrosion-resistant, heavy-duty painted steel yoke. External screws treated for corrosion resistance. Above-horizontal aiming standard.
Listings:
UL Listed (standard) (ambient temperature 25°C for 320W and above and 200S, 40°C for 250W and below). CSA Certified or NOM Certified (see Options). UL Listed for wet locations. IP65 rated.
Construction:
Housing: Compact, soft-corner, die-cast aluminum housing and front cover. Front bezel is fully sealed with one-piece, bonded silicone gasket. Lens is thermal- and shock-resistant, clear, tempered glass. Finish: Dark bronze polyester powder finish standard. Additional architectural colors available; see www.lithonia.com/archcolors.
Optics:
TA2: vertical lamp with one-piece, hydro-formed, anodized aluminum reflector. Two-position adjustable socket. RA2: Horizontal lamp with anodized specular aluminum reflector. Both have sealed optic chamber to inhibit entrance of outside contaminants.
Electrical:
Components mounted to cast-aluminum housing for maximum heat-dissipation. Ballast:
All ballasts are 100% factory tested. High reactance, high power factor for 150W and below. Constant wattage autotransformer 175W and above. MH: 150W and below are standard with pulse-start ignitor technology. Super CWA Pulse STRT ballasts, 88% efficient and EISA legislation compliant, are required for 151-400W (must order SCWA option) for U.S. shipments only. CSA, NOM or INTL required for probe start shipments outside the U.S. Socket: Porcelain, vertically or horizontally oriented mogul-base socket with copper alloy, nickel-plated screw shell and center contact. UL Listed 1500W, 600V, 4KV pulse rated.
Installation:
Corrosion-resistant, heavy-duty, painted steel yoke. External screws treated for corrosion resistance. Above-horizontal aiming standard.
Weights & Dimensions
- Depth 6-1/4 in
- Length 15.75 in
- Height 16.125 in
- Weight 29 lbs
Product Details
- Voltage 120-277 V
- Description Contour® Medium
- Lamp Included Y
- Wattage 400 W
- Brand Lithonia Lighting
- Series TFL
- Manufacturers Part Number TFL 400M RA2 TB SCWA LPI
- Lamp Type 400M Metal halide
- Ballast Type Super SCWA pulse start ballast
- CI Code 158P9M
Customer Review
Product Q & A
There are 1 questions and 1 answer for this product.
-
Does the photocell come with this light? If not what is the product number for the compatable photocell?
Question Asked By: February 25, 2013
Answer This Question
Question Answered By:
-
Product Expert, February 25, 2013
The Lithonia TFL 400M RA2 requires a photocell receptacle which must be installed at the factory. A remote mounted photocell can be used, so long as it matches the voltage.
-

Lithonia TFL 400M RA2 TB SCWA LPI Metal Halide Floodlight w/Lamp 400W Super SCWA Pulse Start Ballast
$247.95
