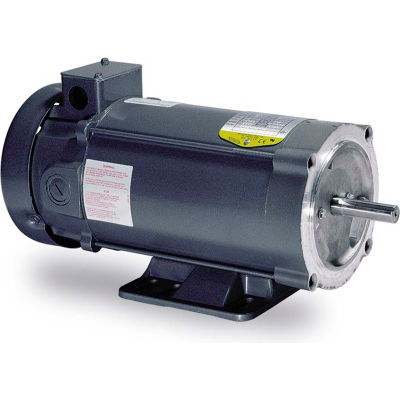

Baldor-Reliance Motor CD3476, .75HP, 1750RPM, DC, 56C, 3428D, TEFC, F1

Baldor-Reliance Motor CD3476, .75HP, 1750RPM, DC, 56C, 3428D, TEFC, F1

Item #: WBB388690

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 200/100
  • 100/50
  • 90
  • 180

200/100

$952.00 up to 18% OFF

Price: $784.00

$130.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $784.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .75HP,1750RPM,DC,56C,3428D,TEFC,F1

Features:
  • TEFC enclosure
  • Shunt wound
  • Class F insulation
  • Designed for use with NEMA TYPE K SCR control 20:1 constant torque speed range (Except where noted)
  • NEMA C-face and removable base (except on explosion proof models)
  • Base welded on type 3513D only
  • NEMA 182 and larger have a thermostat (normally closed contracts) on the field winding
  • No dual mounting base holes on 35D, 75D or 91D type
Typical Applications:
Conveyors, printing, textile equipment, machine tools and other equipment requiring variable speeds with constant torque.

Product Specifications

  • HORSEPOWER3/4
  • ENCLOSURETEFC
  • FRAME56C
  • MOUNTINGRigid
  • NAMEPLATE RPM1750
  • MOTOR RPM 60Hz1750
  • SERVICE FACTORN/A
  • AMBIENT TEMP C40
  • WEIGHT34
  • RPM RANGE1701-1800
  • BALDOR TYPE3428D
  • BLOWER KITN/A
  • FILTER KITN/A
  • FORM FACTORN/A
  • INSULATION CLASSF
  • DE BEARING6203
  • FIELD VOLTAGE200/100
  • FULL LOAD AMPS - FIELD.3/.6
  • MECHANICAL SPECIFICATION NUMBER34LY6172
  • FRAME SIZE56C
  • SPECIFICATION NUMBER34-6172-2038
  • TACH MOUNTING KITN/A
  • ODE BEARING6203
  • RECOMMENDED SCR CONTROLN/A
  • BRANDBaldor-Reliance
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • BALDOR CATALOG NUMBERCD3476
  • BASERG
  • ARMATURE VOLTAGE180
  • ELECTRICAL SPECIFICATION NUMBER34WG2038
  • C-DIMENSION INCHES14.84
