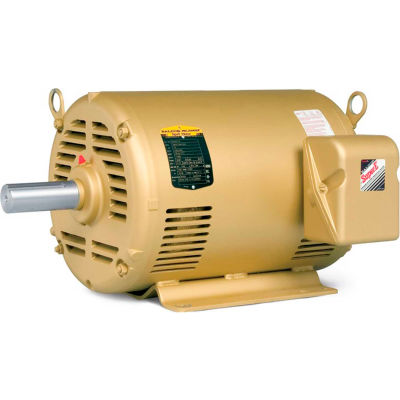

Baldor-Reliance Motor EFM2539T, 40HP, 1775RPM, 3PH, 60HZ, 324T, 4250M, OPSB, F2

Actual product may differ from image shown

Baldor-Reliance Motor EFM2539T, 40HP, 1775RPM, 3PH, 60HZ, 324T, 4250M, OPSB, F2

Item #: WBB390290

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$3,982.00 up to 20% OFF

Price: $3,180.00

$530.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $3,180.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 40HP,1775RPM,3PH,60HZ,324T,4250M,OPSB,F2

Features:
  • Heavy duty frames
  • Ball bearings
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Low-loss electrical lamination grade steel
  • Three year warranty.
Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.

Product Specifications

  • HORSEPOWER40
  • ENCLOSUREOPSB
  • FRAME324T
  • MOUNTINGRigid
  • NAMEPLATE RPM1770
  • PHASE3
  • MOTOR RPM 60Hz1770
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • WEIGHT477
  • RPM RANGE1701-1800
  • DESIGN CODEA
  • BEARING-DRIVE-END6312
  • BEARING-OPP-DRIVE-END6309
  • FL EFFICIENCY94
  • INSULATION CLASSF
  • FL AMPS98/49
  • KVA-CODEH
  • 208V AMPS--
  • BRANDBaldor-Reliance
  • DOE-CODE010A
  • MANUFACTURER PART #EFM2539T
  • CUSTOMER-PART-NUMBER--
  • is_motorYes
  • GREASEPOLYREX EM
  • ENCLOSURE TYPEOpen/Drip Proof
  • SPACE-HEATER-AMPS--
  • SPACE-HEATER-VOLTS--
  • MAX. SPACE HEATER TEMP.--
  • POWER-FACTOR82
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES26.69
  • SERIAL-NUMBER--
  • POLES4
  • SPEC. NUMBER40H024X166G1
