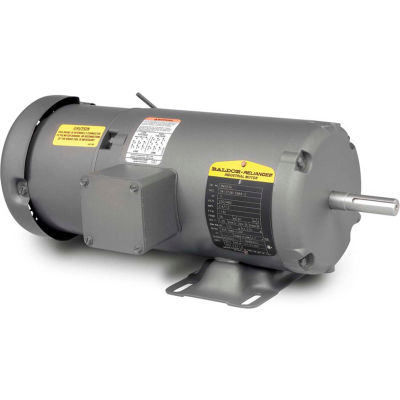

Baldor-Reliance Motor BM3539, .5HP, 1140RPM, 3PH, 60HZ, 56, 3418M, TEFC, F1, B

Actual product may differ from image shown

Baldor-Reliance Motor BM3539, .5HP, 1140RPM, 3PH, 60HZ, 56, 3418M, TEFC, F1, B

Item #: WBB388666

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,171.00 up to 18% OFF

Price: $964.00

$160.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $964.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .5HP,1140RPM,3PH,60HZ,56,3418M,TEFC,F1,B

Features:
  • Spring set brake
  • Power off operation manual release
  • Resets automatically
  • Brakes internally connected to motor on 215T and smaller.
Typical Applications:
Machine tools, conveyors, door operators, speed reducers, any application requiring quick stops and positive hold.

Product Specifications

  • HORSEPOWER1/2
  • ENCLOSURETEFC
  • FRAME56
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1140
  • RPM1140
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1.25
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6203
  • WEIGHT29
  • MANUFACTURERS PART NUMBERBM3539
  • RPM RANGE1101-1200
  • 208V AMPS2.7
  • KVA-CODEJ
  • POWER-FACTOR55
  • FL EFFICIENCY72
  • SERIAL-NUMBER--
  • SPEC. NUMBER34-3108-5884-C
  • BEARING-DRIVE-END6203
  • DESIGN CODEB
  • DOE-CODE--
  • FL AMPS2.4/1.2
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES16.45
  • BRAKE RATING6
  • POLES6
  • INSULATION CLASSB
