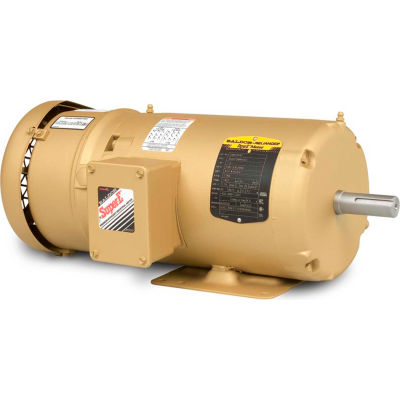

Baldor-Reliance Motor EBM3546T, 1HP, 1765RPM, 3PH, 60HZ, 143T, 3524M, TEFC, F1

Actual product may differ from image shown

Baldor-Reliance Motor EBM3546T, 1HP, 1765RPM, 3PH, 60HZ, 143T, 3524M, TEFC, F1

Item #: WBB388594

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,375.00 up to 18% OFF

Price: $1,132.00

$188.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,132.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1HP,1765RPM,3PH,60HZ,143T,3524M,TEFC,F1

Features:
  • Standard NEMA BA dimension
  • Spring set brake
  • Power off operation manual release
  • NEMA Premium® Efficiency and inverter-ready
  • 230/460V brakes are connected in conduit box
Typical Applications:
Machine tools, conveyors, door operators, speed reducers, any application requiring quick stops and positive hold.

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETEFC
  • FRAME143T
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1760
  • RPM1760
  • PHASE3
  • VOLTAGE208-230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6203
  • WEIGHT47
  • MANUFACTURERS PART NUMBEREBM3546T
  • RPM RANGE1701-1800
  • 208V AMPS3.1
  • KVA-CODEL
  • POWER-FACTOR71
  • FL EFFICIENCY85.5
  • SERIAL-NUMBER--
  • SPEC. NUMBER35X075M492G1
  • BEARING-DRIVE-END6205
  • DESIGN CODEB
  • DOE-CODE--
  • FL AMPS3.1-3/1.5
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES17.86
  • BRAKE RATING6
  • POLES4
  • INSULATION CLASSF
