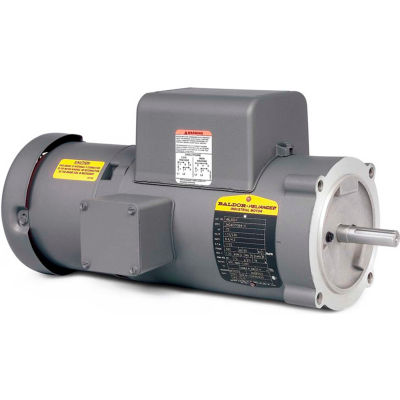

Baldor-Reliance Motor VBL3507, .75HP, 1725RPM, 1PH, 60HZ, 56C, 3428LC, TEFC, F

Actual product may differ from image shown

Baldor-Reliance Motor VBL3507, .75HP, 1725RPM, 1PH, 60HZ, 56C, 3428LC, TEFC, F

Item #: WBB390735

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,179.00 up to 11% OFF

Price: $1,045.00

$174.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,045.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .75HP,1725RPM,1PH,60HZ,56C,3428LC,TEFC,F

Features:
  • Spring set brake
  • Power off operation manual release
  • Resets automatically
  • Brakes internally connected to motor on 215T and smaller
Typical Applications:
Machine tools, conveyors, door operators, speed reducers, any application requiring quick stop and hold.

Product Specifications

  • HORSEPOWER3/4
  • ENCLOSURETEFC
  • FRAME56C
  • BRANDBaldor-Reliance
  • MOUNTINGC-Face Footless
  • MOTOR RPM 60Hz1725
  • RPM1725
  • PHASE1
  • VOLTAGE115/230
  • HERTZ60
  • SERVICE FACTOR1.25
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6203
  • WEIGHT41
  • MANUFACTURERS PART NUMBERVBL3507
  • RPM RANGE1701-1800
  • 208V AMPS5.4
  • KVA-CODEJ
  • POWER-FACTOR78
  • FL EFFICIENCY72
  • SERIAL-NUMBER--
  • SPEC. NUMBER34G457Y094-C
  • BEARING-DRIVE-END6203
  • DESIGN CODEN
  • DOE-CODE--
  • FL AMPS8.4/4.2
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES16.82
  • BRAKE RATING6
  • POLES4
  • INSULATION CLASSB
