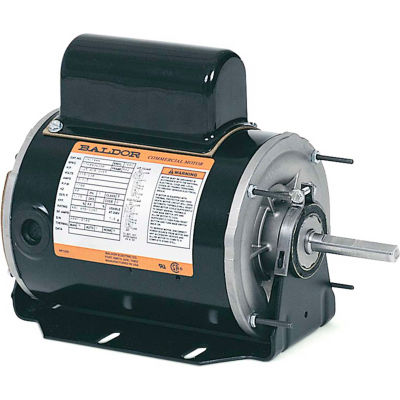

Baldor-Reliance Motor CHC545A, 1HP, 1700RPM, 1PH, 60HZ, 56, 1924C, TEAO, F1, N

Baldor-Reliance Motor CHC545A, 1HP, 1700RPM, 1PH, 60HZ, 56, 1924C, TEAO, F1, N

Item #: WBB388063

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$379.00 up to 1% OFF

Price: $375.95

Save $18.80 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1HP,1700RPM,1PH,60HZ,56,1924C,TEAO,F1,N

Features:
  • Automatic thermal overload
  • Ball bearings
  • Extended thru-bolts
  • Resilient cushion rings
  • Reversible rotation
  • Rugged steel frame
  • Suitable for mounting in any position
  • Terminal panel with quick connections on single phase
Typical Applications:
Air handling fans, Confinement houses, Exhaust fans, Unit heaters, and other applications having moderate starting loads

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETEAO
  • FRAME56
  • BRANDBaldor-Reliance
  • MOUNTINGResilient Base
  • MOTOR RPM 60Hz1700
  • RPM1700
  • PHASE1
  • VOLTAGE115/230
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT39
  • RPM RANGE1501-1700
  • SERVICE-FACTOR-AMPS--
  • MANUFACTURER PART NUMBERCHC545A
  • THERMAL-SELECTN
  • 208V AMPS--
  • KVA-CODEF
  • POWER-FACTOR--
  • FL EFFICIENCY72
  • SERIAL-NUMBER--
  • SPEC. NUMBER19K013W073
  • DESIGN CODE-
  • BALDOR CATALOG NUMBERCHC545A
  • FL AMPS9.8/4.9
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES13.04
  • POLES4
  • INSULATION CLASSB
