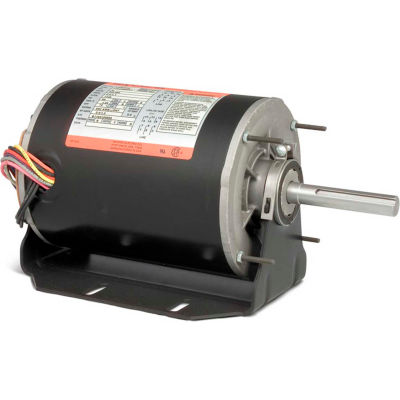

Baldor-Reliance Motor CHM164A, .25 AIR OVERHP, 1140RPM, 3PH, 60HZ, 48Z, 1711

Baldor-Reliance Motor CHM164A, .25 AIR OVERHP, 1140RPM, 3PH, 60HZ, 48Z, 1711

Item #: WBB387766

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $287.95

Save $14.40 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .25 AIR OVERHP,1140RPM,3PH,60HZ,48Z,1711

Features:
  • Automatic thermal overload
  • Ball bearings
  • Extended thru-bolts
  • Resilient cushion rings
  • Reversible rotation
  • Rugged steel frame
  • Suitable for mounting in any position
  • Terminal panel with quick connections on single phase
Typical Applications:
Air handling fans, Confinement houses, Exhaust fans, Unit heaters, and other applications having moderate starting loads

Product Specifications

  • HORSEPOWER1/4
  • ENCLOSURETEAO
  • FRAME48Z
  • BRANDBaldor-Reliance
  • MOUNTINGResilient Base
  • MOTOR RPM 60Hz1140
  • RPM1140
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1.25
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT25
  • RPM RANGE1101-1200
  • SERVICE-FACTOR-AMPS1.4/.7
  • MANUFACTURER PART NUMBERCHM164A
  • THERMAL-SELECTN
  • 208V AMPS1.4
  • KVA-CODEL
  • POWER-FACTOR53
  • FL EFFICIENCY66
  • SERIAL-NUMBER--
  • SPEC. NUMBER17K042W384
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERCHM164A
  • FL AMPS1.3/.65
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES11.46
  • POLES6
  • INSULATION CLASSB
