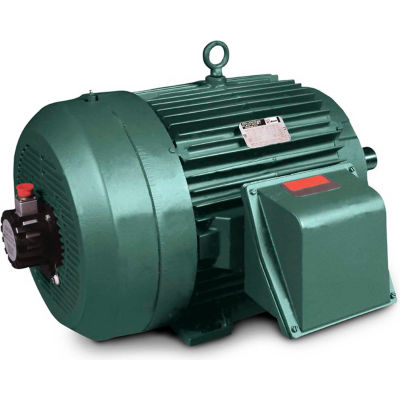

Baldor-Reliance Motor ZDVSM3661T, 3HP, 1800RPM, 3PH, 60HZ, 182TC, TEFC, FOOT

Baldor-Reliance Motor ZDVSM3661T, 3HP, 1800RPM, 3PH, 60HZ, 182TC, TEFC, FOOT

Item #: WBB392026

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$3,093.00 up to 18% OFF

Price: $2,544.00

$424.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $2,544.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 3HP,1800RPM,3PH,60HZ,182TC,TEFC,FOOT,

Features:
  • Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
  • Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
  • Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
  • Continuous constant torque to zero speed
Typical Applications:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.

Product Specifications

  • HORSEPOWER3
  • ENCLOSURETEFC
  • FRAME182TC
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1755
  • RPM1755
  • PHASE3
  • VOLTAGE230/460
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT125
  • DUTYContinuous
  • RPM RANGE1701-1800
  • ROTOR-INERTIA0.34
  • BRG-ODE-AFBMA25BC02JP30X
  • is_motorYes
  • TEMP. CODE2
  • SERIAL-NUMBER--
  • SPEC. NUMBERP18G1233
  • MOTOR-MAX-HZ90
  • MOTOR-MAX-RPM2630
  • BALDOR CATALOG NUMBERZDVSM3661T
  • BRG-DE-AFBMA30BC02JP30X
  • CONSTANT-TORQ-HERTZ1000 1
  • MOTOR-BASE-AMPS7.6/3.8
  • MOTOR-BASE-HP3
  • TYPEP
  • MAGNETIZING-CURRENT2.8/1.4
  • MAXIMUM-RPM6200
  • MOTOR-BASE-VOLTS230/460
  • DRIVE END FLANGEC-Face
  • MOTOR-MAX-AMPS7.4/3.7
  • MOTOR-BASE-HZ60
  • C-DIMENSION INCHES15.62
  • MOTOR-BASE-RPM1755
  • POLES4
  • RELIANCE NUMBERE01384ACDL006
  • MOTOR-MAX-HP3
  • INSULATION CLASSF
  • MOTOR-MAX-VOLTS230/460
