Baldor-Reliance Washdown Motor CEWDM23932T, 3 PH, 10 HP, 1180 RPM, 208-230/460 V, TEFC, 256TC FR

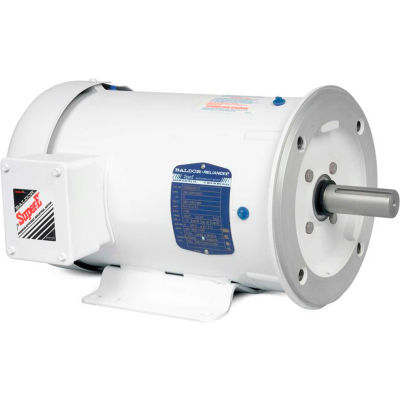

Actual product may differ from image shown

Baldor-Reliance Washdown Motor CEWDM23932T, 3 PH, 10 HP, 1180 RPM, 208-230/460 V, TEFC, 256TC FR

Item #: WBB909492

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $3,090.00

$515.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $3,090.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Washdown Motor CEWDM23932T, 3 PH, 10 HP, 1180 RPM, 208-230/460 V, TEFC, 256TC FR

Baldor-Reliance's Washdown Duty Motors are available from stock in single and three phase AC and in DC designs. Horsepowers range from 1/2 to 20. Designs include motors having an electostatically applied epoxy finish, paint free with major components in 300 series stainless steel, and all stainless steel. Applications include food processing, packaging, pharmaceuticals, or applications where motors are regularly exposed to high pressure wash down.

Features
  • Moisture sealant on bolt heads, between frame and endplates
Application(s)
  • Food processing and other applications where motor is regularly exposed to high pressure wash down.

Product Specifications

  • HORSEPOWER10
  • ENCLOSURETEFC
  • FRAME256TC
  • BRANDBaldor-Reliance
  • MOUNTINGC-Face Rigid
  • MOTOR RPM 60Hz1180
  • RPM1180
  • PHASE3
  • VOLTAGE208-230/460
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • DUTYContinuous
  • RPM RANGE1101-1200
  • SPECIFICATION NUMBER39R098X705G1
  • 208V AMPS--
  • KVA-CODEK
  • is_motorYes
  • POWER-FACTOR68
  • FL EFFICIENCY91
  • BEARING-DRIVE-END6309
  • DESIGN CODEA
  • BALDOR CATALOG NUMBERCEWDM23932T
  • DOE-CODE010A
  • FL AMPS30.6-30.2/15.1
  • MANUFACTURER PART #CEWDM23932T
  • BEARING-OPP-DRIVE-END6208
  • TYPEWashdown Motor
  • C-DIMENSION INCHES23.57
  • INSULATION CLASSF
