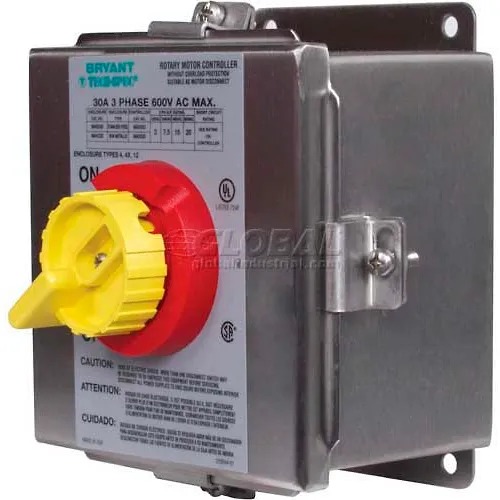

NEMA 4X Stainless Steel Toggle Switch in Enclosure, 30 AMP 600V

NEMA 4X Stainless Steel Toggle Switch in Enclosure, 30 AMP 600V

Item #: WBB864075

Not Yet Rated

Ships same day. ? Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $327.95

Save $16.40 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

NEMA 4X Enclosed Rotary Motor Controller/Disconnect is ideal for use in indoor enviromnents. Ideal for use in environments where washdown is necessary, i.e. food processing, laboratories, etc.

  • BRAND Bryant
  • MAX VOLTAGE 600V AC RMS
  • ELECTRICAL LIFE 6,000 CYCLES AT RATED SWITCH LOAD
  • DIELECTRIC VOLTAGE 2,200V AC MINIMUM FOR 1 MINUTE
  • BOX ENCLOSURE NEMA 4X STAINLESS STEEL
  • AMPS 30
  • SHORT CIRCUIT WITHSTAND RATING AS MOTOR DISCONNECT 60A MAX J FUSES 10,000 RMS
  • UL LISTING UL 508 Industrial Control Equipment File # E70402
  • 600V AC 20
  • 480V AC 15
  • 240V AC 7.5
  • TERMINAL TORQUE 20 INCH POUNDS
  • TERMINAL ACCOMODATIONS AWG MIN. #14 - AWG MAX. #10
  • FLAMMABILITY UL94HB/VO
  • DEPTH INCHES 6.1
  • CSA LISTING CSA-C22.2 No. 14 Industrial Control Equipment File # LR-46186
  • 120V AC 3
  • PRODUCT TYPE Motor Control SW T
  • POLES 3
  • WEIGHT LBS 5
  • LENGTH INCHES 7.44
  • WIDTH INCHES 6.96
  • PHASE 3
  • OPERATING TEMPERATURES MIN. CONTINUOUS -40DEG C MAX. CONTINUOUS 60DEG C
  • SHORT CIRCUIT WITHSTAND RATING AS MOTOR CONTROLLER 125A MAX RK5 FUSES
