TPI

Model # :WBB202250

MPN #: PD15121823

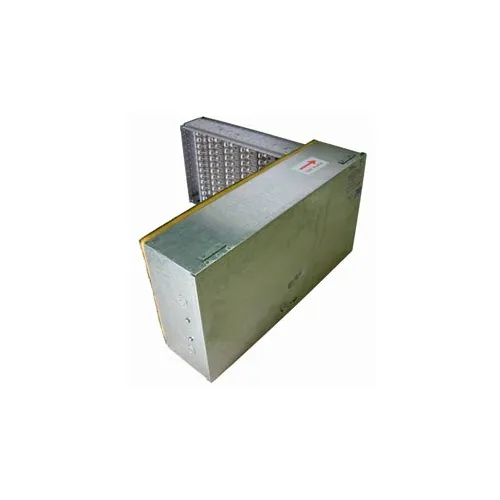

TPI Packaged Duct Heater PD15-1218-2-3 - 15000W 240V 3 PH 18W x 12H

Product Description
This Packaged Duct Heater is made using a galvanized steel compartment with 1/2" fiberglass insulation and hinged cover. Features door interlock disconnect switch, primary automatic reset temperature limit control and load carrying secondary over temperature protective device. Includes definite purpose magnetic contactor, differential pressure fan interlock switch. 24V step down transformer. Permanently attached wiring diagram on inside of terminal compartment cover. Galvanized steel element rack must always be 1" shorter than duct height and 1/2" shorter than duct width to allow insertion clearance. UL listed. 1 Year Limited Warranty.

PRICE
$1,469.00

1
1
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length18 in
Width26 in
Height12 in
Weight33 lbs

Product Details

TypePackaged Duct Heater
ColorGray
Amperage36.2 A
Wattage15000 W
Voltage240 V
MaterialSteel
Phase3
Manufacturers Part NumberPD15121823
BrandTPI

Warranty

Warranty1 yr

Compliance & Certifications

CertificationsUL
