Pallet Rack Upright Frame - 4" Channel 42"D x 192"H

Steel King® SK3000® Structural Channel Pallet Rack - 42"D X 120"H Upright - BCF3L042120F03PB Steel King upright frame columns consist of 3" structural channel steel. Steel thickness, especially in corner sections, enables greater resistance to fork truck impact damage, while increasing load carrying capacity and resistance to seismic forces. Upright frames are punched on 4" vertical centers. Beam connections are specially punched to allow for vertical adjustability in 2" increments. Diagonal and horizontal braces are used throughout the entire frame. Braces are 1.5"x1.5" structural ...

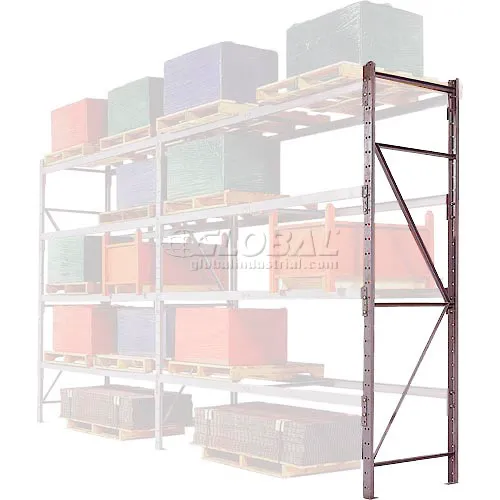

✓14-gauge steel uprights ✓27600 lb. total rated capacity ✓ Teardrop connection style GLOBAL TEAR DROP PALLET RACK Welded Upright Frame Welded upright frames are made with 14 gauge steel. Punched on 2" centers for easy beam adjustment. Long lasting baked-on enamel finish. To select an upright beam determine the total weight of all pallets for each pair of upright frames. Add the height of all pallet loads, beam height, allowing 4" to 8" clearance between the top of the load and the bottom of the beam above. The top beam should be a minimum of 6" less than the ...

Interlake Mecalux assembled tear drop bolted pallet rack upright frame This style of pallet rack upright frames provides versatility for warehouses that have wide varieties of product types. Bolted pallet racking is ideal for any warehouse, offering direct access to each pallet, simple stock management and adaptation to any product volume, weight or size. It is manufactured from high-strength steel and other quality raw materials. Product Features: Bolted pallet rack upright frames come pre-assembled for easy customer set-up. Bolted pallet rack uprights allow flexible configuration and ...

Welded upright frames include foot plates. Heavy-duty foot plates are available for seismic requirements. Upright frame capacities are calculated in accordance with RMI 1997 Standards. Upright frame style change as of April 2012; beams are interchangeable. Polyurethane paint finish. Color: green.

The Interlake Mecalux welded pallet rack tear drop upright frame provides versatility for warehouses that have wide varieties of product types. Welded pallet rack upright tear drop frames are ideal for any warehouse, offering direct access to each pallet, simple stock management and adaptation to any product volume, weight or size. It is manufactured from high-strength steel and other quality raw materials. Product Features: Welded pallet rack tear drop upright frames come pre-assembled for easy customer set-up. Welded pallet rack upright frames are made with 14- gauge steel. The teardrop ...
