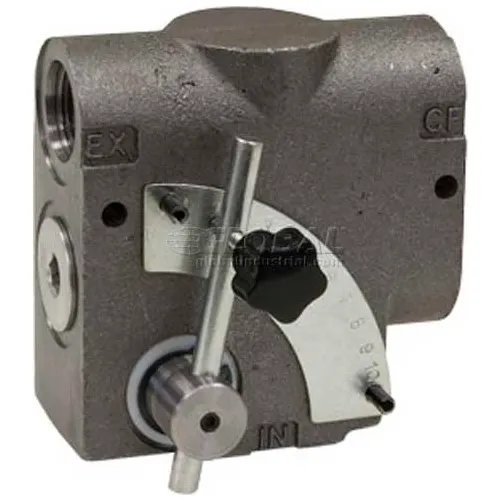

Buyers Side Ported Adjustable Flow Control Valve, HFDL075, 3/4" NPT Ports, 0-30 GPM

Have a screwed bonnet, non-rising stem, solid wedge disc, and integral seats Recommended for non-steam use in residential and light commercial applications May be repacked while in service under pressure 200 PSI W.O.G. Non-shock

Priority flow dividers split the oil from a single inlet into two separate flows One is a controlled, adjustable flow which has priority on the oil entering the valve The other is a secondary flow based on oil in excess of that demanded by the priority flow Both flows may be used simultaneously at different pressures without affecting the priority flow rate External adjusting knob controls priority flow rate Load may be applied to either port without affecting priority flow rate

Single or Dual flow regulator with built-in on-off control plus system relief and pressure compensated Built-in differential style relief valve and on-off valve in a single compact body Permits easy installation with min. plumbing Detent hand knob for each flow control Easy to adjust flow, 11 positive positions Aluminum body All ports are 3/4" NPT, except 1/2" NPT spinner port Relief cartridge std. setting 1500 PSI (105 bar)

Number of Spools 1,2,3 Rated Working Pressure 2500 PSI (172 bar) Max. Shock and Surge Pressure 4000 PSI (276 bar) Rated Flow Capacity 30 GPM (114 l/m) Max. Spool Leakage (1000 PSI) 16 cc/min Mounting, Any Position 3 Mounting Holes for 3?8" Bolts Weight 1 Spool: 13 lbs.; 2 Spool: 21 lbs.; 3 Spool: 33 lbs. Standard Features Integral load holding check valves (prevents reverse flow through valve when shifting) Integral differential poppet type relief valve, adjustable (set @ 2000 PSI, 10 GPM) Balanced, select-fit spools (provide minimum leakage, smooth operation) External spool seals (permit ...

Priority flow dividers split the oil from a single inlet into two separate flows One is a controlled, adjustable flow which has priority on the oil entering the valve The other is a secondary flow based on oil in excess of that demanded by the priority flow Both flows may be used simultaneously at different pressures without affecting the priority flow rate External adjusting knob controls priority flow rate Load may be applied to either port without affecting priority flow rate
