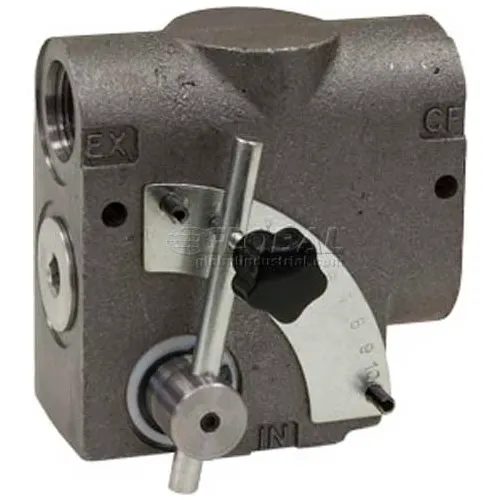

Buyers Side Ported Adjustable Flow Control Valve, HFDL075SAE, #12 SAE Ports, 0-30 GPM

Pump/motor/reservoir Externally adjustable system relief valve, flow control on down .375" NPTF outlet port Suction filter Large 5½" x 6½" x 19" reservoir 715 in.3 (3 gallon usable) Large dump valve 8 GPM Control box with 6-foot cord Power Up - Gravity Down

Number of Spools 1,2,3 Rated Working Pressure 2500 PSI (172 bar) Max. Shock and Surge Pressure 4000 PSI (276 bar) Rated Flow Capacity 30 GPM (114 l/m) Max. Spool Leakage (1000 PSI) 16 cc/min Mounting, Any Position 3 Mounting Holes for 3?8" Bolts Weight 1 Spool: 13 lbs.; 2 Spool: 21 lbs.; 3 Spool: 33 lbs. Standard Features Integral load holding check valves (prevents reverse flow through valve when shifting) Integral differential poppet type relief valve, adjustable (set @ 2000 PSI, 10 GPM) Balanced, select-fit spools (provide minimum leakage, smooth operation) External spool seals (permit ...

Single or Dual flow regulator with built-in on-off control plus system relief and pressure compensated Built-in differential style relief valve and on-off valve in a single compact body Permits easy installation with min. plumbing Detent hand knob for each flow control Easy to adjust flow, 11 positive positions Aluminum body All ports are 3/4" NPT, except 1/2" NPT spinner port Relief cartridge std. setting 1500 PSI (105 bar)

Single or Dual flow regulator with built-in on-off control plus system relief and pressure compensated Built-in differential style relief valve and on-off valve in a single compact body Permits easy installation with min. plumbing Detent hand knob for each flow control Easy to adjust flow, 11 positive positions Aluminum body All ports are 3/4" NPT, except 1/2" NPT spinner port Relief cartridge std. setting 1500 PSI (105 bar)

Have a screwed bonnet, non-rising stem, solid wedge disc, and integral seats Recommended for non-steam use in residential and light commercial applications May be repacked while in service under pressure 200 PSI W.O.G. Non-shock
