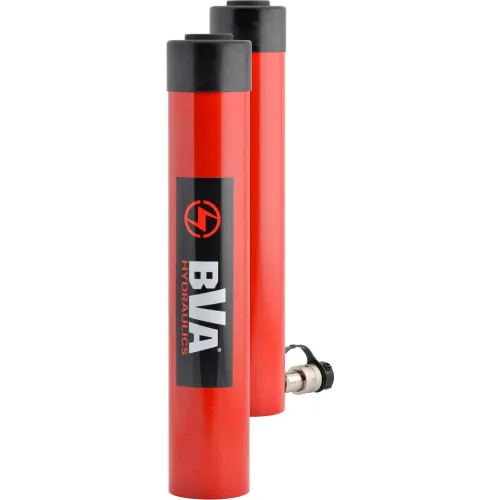

BVA Hydraulics Single Acting Hydraulic Cylinder H2514, 25 Ton, 14" Stroke

BVA Hydraulics Single Acting Hydraulic Cylinder H2514, 25 Ton, 14" Stroke

Item #: WBB1775827

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,254.00

$209.00/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

BVA Hydraulics 10 Ton Single Acting Cylinder H1006, 6'' Stroke

BVA Hydraulics 10 Ton Single Acting Cylinder H1006, 6'' Stroke

BVA Hydraulics Single Acting Hydraulic Cylinder H2506, 25 Ton, 6" Stroke

BVA Hydraulics Single Acting Hydraulic Cylinder H2506, 25 Ton, 6" Stroke

BVA Hydraulics Single Acting Hydraulic Cylinder H1504, 15 Ton, 4" Stroke

BVA Hydraulics Single Acting Hydraulic Cylinder H1504, 15 Ton, 4" Stroke

BVA Hydraulics Flat Body Hydraulic Cylinder Kit HF1005B, 10 Ton

BVA Hydraulics Flat Body Hydraulic Cylinder Kit HF1005B, 10 Ton

BVA Hydraulics Single Acting Hollow Hole Hydraulic Cylinder HC3002T, 30 Ton, 2" Stroke

BVA Hydraulics Single Acting Hollow Hole Hydraulic Cylinder HC3002T, 30 Ton, 2" Stroke

BVA Hydraulics Low Profile Hydraulic Cylinder HL5002, 50 Ton, 2.36" Stroke

BVA Hydraulics Low Profile Hydraulic Cylinder HL5002, 50 Ton, 2.36" Stroke

BVA Hydraulics Low Profile Hydraulic Cylinder HL2002, 20 Ton, 1.75" Stroke

BVA Hydraulics Low Profile Hydraulic Cylinder HL2002, 20 Ton, 1.75" Stroke

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

BVA Hydraulics Single Acting Hydraulic Cylinder H2514, 25 Ton, 14" Stroke

BVA H2514 Hydraulic Cylinder with the 25 tons capacity and 14 inch stroke is ideal for lifting and pressing. BVA hydraulic H series cylinders are known in the industry as one of the best cylinders available. BVA Cylinders feature a one piece high grade alloy bearing for side load protection, and cylinders are burnish rolled for a smooth precision finish to prolong seal life. All BVA cylinders come with removable hardened saddles to protect plunger operation. Collar threads, plunger threads and base mounting holes enable easy fixturing. BVA H2514 Hydraulic Cylinder is a 25 ton 14 inch stroke single acting cylinder. It features heavy duty return springs, and the industrial hard chrome plated rod helps prevent rust and corrosion resistance. The CH38F coupler and dust cap are also included on all models. The maximum working pressure is 10,000 psi, (700 bar). WARNING: NEVER use hydraulic cylinder as a support device.

Features:
  • High strength steel construction from gun drilled solid bar
  • Plunger wipers help seal out dirt
  • One piece high grade alloy bearing for side load protection and long life
  • Ideal for lifting and pressing
  • 3/8" - 18 NPTF high flow couplers
  • 25 Ton 14 Inch Stroke Single Acting Cylinder
  • Compare to Enerpac RC-2514; Compare to SPX Power Team C2514C

Weights & Dimensions

  • Collapsed Height 18.74
  • Collar Thread Length 1.93
  • Cylinder Bore Diameter 2.56
  • Extended Height 32.99
  • Width 25 in
  • Diameter 3.35
  • Length 16 in
  • Height 7/8 in
  • Weight 40 lbs
  • Stroke 14 in

Product Details

  • Coupler Type CH38F
  • Description Single Acting Cylinder
  • Internal Pressure at Capacity 9708 psi
  • Brand BVA Hydraulics
  • Cylinder Capacity (Tons) 25 tons
  • Manufacturers Part Number H2514
  • Cylinder Effective Area (In²) 5.15 in²
  • Oil Capacity (In³) 62.83 in
