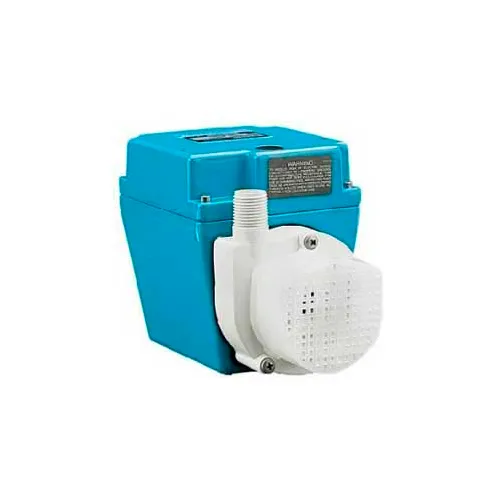

Little Giant 503216 3E-12NRY Small Submersible Pump - Dual Purpose- 230V- 600 GPH At 1'

Product Description
Little Giant® Small Submersible Pump 3E-12NRY, Dual Purpose, 230V, 600 GPH At 1'

Dual purpose oil-filled pump that may be used totally submersed or in-line (fed with pipe or hose). For commercial, industrial, and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or re-circulated. This compact 500 GPH pump features a 1/2" MNPT discharge and 17.3' shut-off head capability. It is not recommended to use the 3E series in aquariums, swimming pools .

Features:

  • 600 GPH At 1 ft
  • Operates submersed or in-line
  • 230V 50/60 Hz
  • 12' cord, no plug
  • Epoxy-coated aluminum housing.
  • 1/2" FNPT inlet with snap-off screen for easy cleaning
  • 1/2" MNPT outlet accepts 3/4" I.D. tubing.
  • Thermally protected
PRICE
$439.95

1
1
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length7 in
Width4-1/2 in
Height5-1/2 in
Weight9 lbs
Cord Length6 ft
Max Head21 ft
Inlet Connection1/2 in
Discharge Connection Size1/2 in

Product Details

Max Fluid Temperature120 °F
Gallons per Minute10 gal/min
Impeller MaterialNylon
Wattage200 W
MaterialAluminum
Phase1
Discharge Connection TypeMNPT
Manufacturers Part Number503216
SubmersibleYes
Temperature of Liquid Pumped120
Continuous OperationYes
BrandLittle Giant
TypeSmall Submersible Pump
Horsepower1/15 HP
Amperage1.7/1.4 A
Series3E-12NRY
Hertz50/60 Hz
Voltage230 V
Gallons per Hour600 @ 1' gal/hr
Inlet Connection TypeFNPT
Shaft Seal MaterialFluroelastomer
Max Pressure22.5 psi

Warranty

Warranty1 yr

Compliance & Certifications

CertificationsCSA / UL
