Features:
- Ergonomic design minimizes bending and twisting
- Welded steel construction provides long lasting rugged use
- 40 Degrees tilt angle offers better ergonomics and operator comfort
- Platform end lip safely supports containers when tilted
Vestil™ Steel Lift Table, AC Powered, 51-1/2"L x 54"W, 6000 lb. Capacity
Write a Review
|
Questions & Answers (0)
Product Description

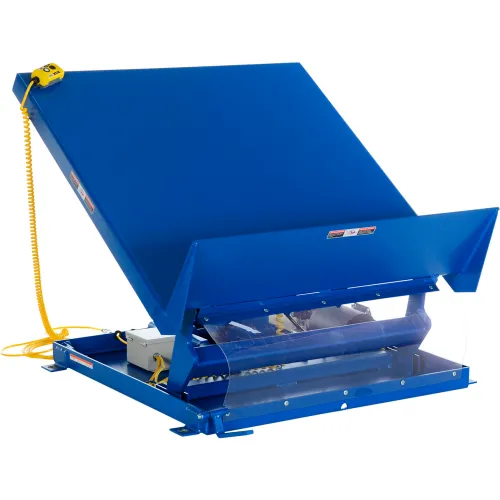

The single scissor lift & tilt table is designed to position containers within easy reach of assembly line workers and machine operators. The unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. This scissor table comes with a high lip on the tilt side which makes it ideal for parts transfer and assembly. The selector pedal allows the operator to lift while tilting, or tilt then lift. The motor is totally enclosed standard. Other standard features include: a two-button handheld control, integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve, independent oil return, and an adjustable upward travel switch. Scissor table must be lagged to the floor.
Features:
Features:
PRICE
$5,669.00
1
1
Ships in 50 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 51-1/2 in |
| Width | 54 in |
| Raised Height | 20 in |
| Weight Capacity | 6000 lbs |
| Weight | 43 lbs |
| Platform Width | 54 in |
| Platform Length | 48 in |
Product Details
| Assembly Required | No |
| Type | Tilt Table |
| Color | Blue |
| Lift Type | Electric |
| Voltage | 208 V |
| Control | Hand Operated |
| Material | Steel |
| Phase | 3 |
| Manufacturers Part Number | UNI-5448-6-BLU-208-3 |
| Brand | Vestil |
