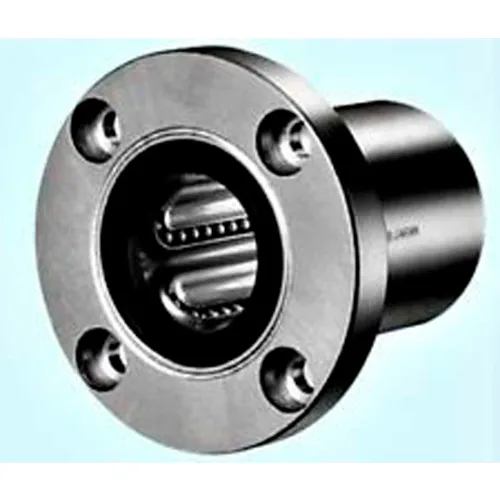

NB Corp SWF20G 1-1/4" ID Round Flange Type Linear Bearing W/Resin Retainer, Steel
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
Weights & Dimensions
- Dimension T .375"
- Dimension D 2"
- DR Tolerance 0-0.0005"
- DR 1.25"
- Dimension L 2.625
- Inside Dimensions 1-1/4
- Flange PCD 2.5625"
- Df 3.125"
- X x Y x Z .2812 x .4060 x .2656 in
- Dynamic Weight Load 352.95 lbs
- Static Weight Load 615.97 lbs
- D Tolerance 0-0.0009"
Product Details
- Description Round Flange Type Linear Bearing W/Resin Retainer
- Number of Ball Circuits 6
- Brand NB Corporation
- Material Steel
- Manufacturers Part Number SWF20G
Customer Review
Product Q & A
There are no questions for this product.
NB Corp SWF20G 1-1/4" ID Round Flange Type Linear Bearing W/Resin Retainer, Steel
$46.95
