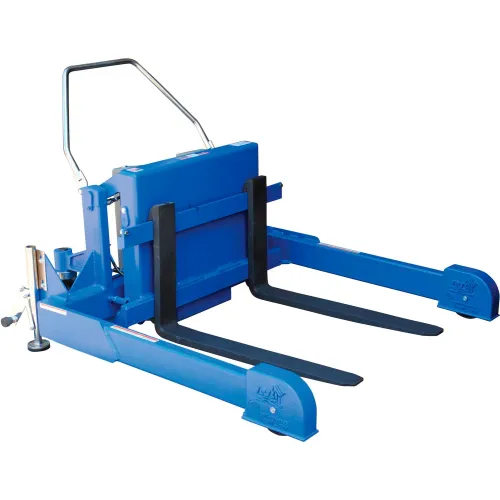

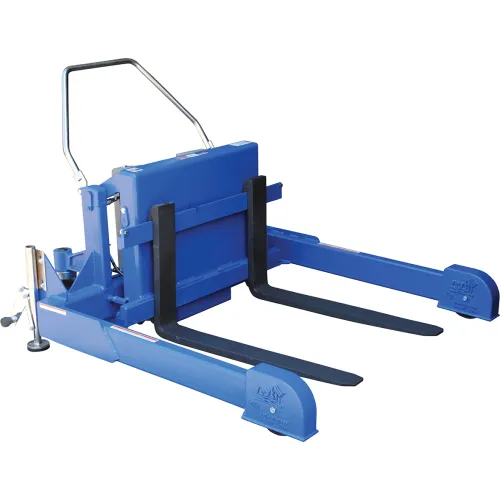

Tilt Master 12V DC Straddle Pallet & Container Tilter TMS-60-DC the Tilt Master Straddle lifts and positions filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty tilt master. The tilter will function as transporters by moving completed products from work station to work station without waiting for a fork truck. It features a folding ergonomic handle for quick and easy maneuverability. This Lift has a thin profile to allow the user to get as close to the load as possible. It also has a standard floor lock and rolls easily on the phenolic steering wheels. Lift is designed to be used with virtually any kind of container or pallet. The unit is powered by a DC electric motor that includes an on-board battery charger, battery charge indicator and comes standard with a push-button hand control on a coil cord.
Vestil Tilt Master Elec. Straddle Pallet & Container Tilter, 6000 lb. Cap, 57-1/4"W x 35-1/2"L Forks
|
Questions & Answers (0)
Product Description
PRICE
$6,184.00
1
1
Ships in 50 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 72-13/16 in |
| Width | 57-1/4 in |
| Height | 29-1/4 in |
| Lowered Height | 3 in |
| Raised Height | 37 in |
| Weight Capacity | 6000 lbs |
| Weight | 1002 lbs |
| Fork Length | 35-1/2 in |
| Fork Width | 4 in |
| Distance Between Forks | 1/2 to 28-1/2 in |
| Distance Across Forks | 8-1/2 to 36-1/2 in |
| Wheel Diameter | 8 in |
| Operator Reach | 13-1/2 in |
| Fork Adjustment | 1/2 to 28-1/2 I.D. in |
Product Details
| Assembly Required | No |
| Min Tile Angle Degrees | 0 |
| Material | Steel |
| Lift Time | 24 Seconds |
| Operation | Electric |
| Manufacturers Part Number | TMS-60-DC |
| Max Tilt Angle Degrees | 90 |
| Brand | Vestil |
| Type | Pallet & Container Tilter |
| Color | Blue |
| Style | Adjustable Width Forks |
| Load Wheel Material | Phenolic |
| Voltage | 12 V |
| Batteries | Yes |
Warranty
| Warranty | 1 yr |
